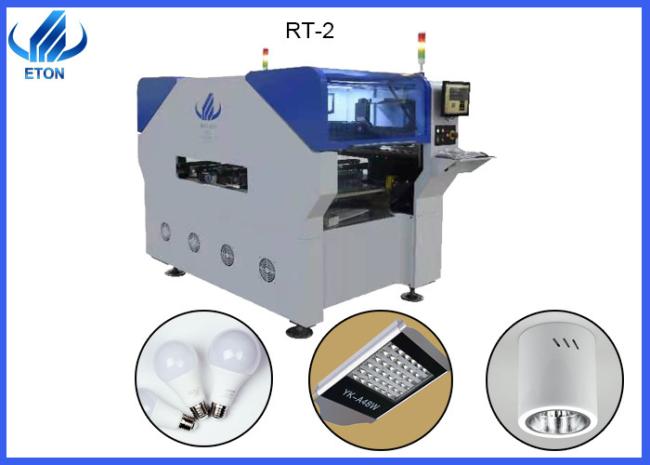

High Speed 20 heads SMT Pick and Place Machine LED Chip Shooter 8Kw RT-2
Description of pick and place machine:
Brand: ETON
Application: Led lighting and electrical board
Warranty: 1 year for free warranty
PCB Length Width:Max:400mm*350mm Min:50mm*50mm
Weight:2200KG
Power/power consumption: 380AC,50Hz/ 8kw
| Technical parameters of pick and place machine | |
| Length*Width*Height | 1200mm*1930mm*1500mm |
| Total Weight | 2500kg |
| PCB Length Width | Max:400mm*350mm Min:50mm*50mm |
| Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
| Mounting speed | 90000 CPH |
| Components | LED,resistor,capacitors,shaped components,etc. |
| power/power consumption | 380AC,50Hz/ 6kw |
| No.of Feeders Station | 64 PCS |
| No.of nozzles | 20 PCS |
| Mounting Height | <25mm |
| Feeding way | Electric feeder with double motor |
| No.of Camera | 4 sets of imported camera |
| PCB Thickness | 0.1~6mm |
Features of pick and place machine
1. Dule Modules double systems, can produce two different products at same time.
2. 20 heads with flight identification, mark correction.
3. High precision machine for LED bulb, downlight, street, display screen, driver and other electronic
PCB borads and so on.
Application of pick and place machine:
1. LED lighting manufacturer/factory
2. LED process company/factory
3. PCBA making manufacturer
4. Home applicance PCB board manufacturer factory
