Double module multifunctional auto online drive 90000 CPH smt pick and place equipment
Double module multifunctional auto online drive 90000 CPH smt pick and place equipmen
Product discription

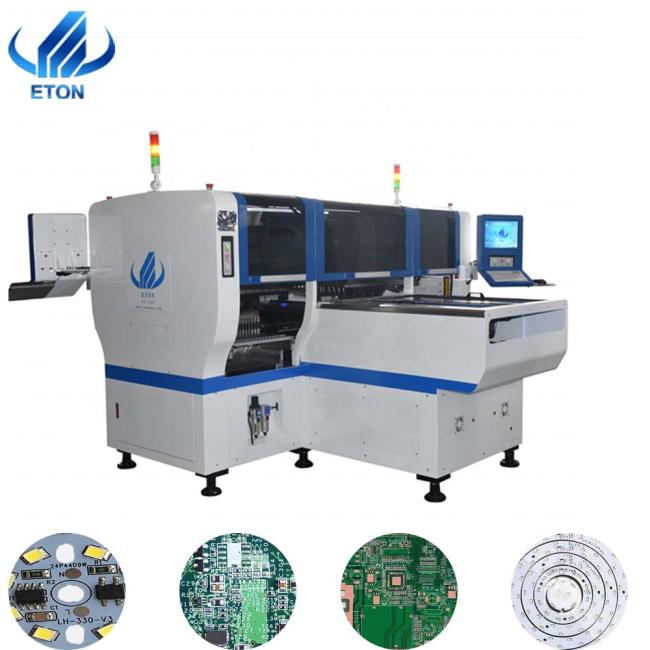

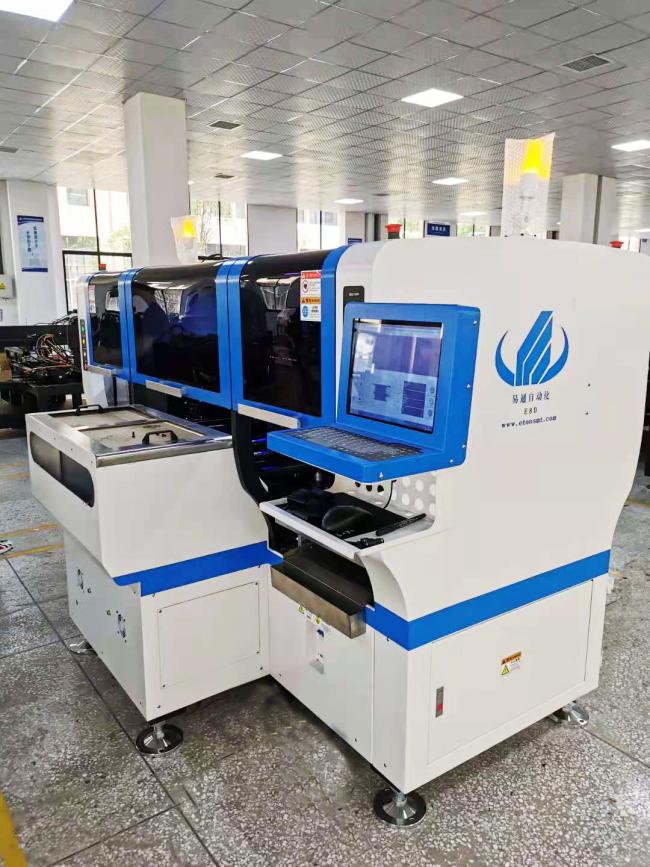

HT-E8D-1200 is double module pick and place machine.Each module is controlled by a set of independent programs.And ic can produce 2 difference products while it works with 90000 CPH.
| Dimension | 3150*2250*1650mm |
| Weight | 2500kg |
| PCB length width | 1200*300mm 100*100mm |
| PCB thickness | 0.5~5mm |
| NO. of head | 24PCS |
| Mounting mode | group picking and separately placing,separately picking and separately placing |
| NO.of camera | 4 PCS |
| Mounting precision | ±0.04mm |
| Mounting speed | 90000CPH |
| NO.of feeders station | 48PCS |
Main features
- Dual system,dual module multifunctional mounter To produce two different products at same time.
- Mounting components:LEDchip,capacitors,resistors,IC, shaped components,etc.
- Component:Min.size0402 Max.height 15mm.
- .Application: Power driver.electric board.lens.DOB bulb linear bulb.household appliance etc.
- Electronic feeder feeding system.
- Vision alignment flight identification ,Mark correction Non-stop material re-loading function.
- Auto-optimization after coordinates generated,et.
Service
- If you have any question, you can consult me.
- The warranty period of the whole machine is one year.
- Visit clients rehularly and collect customer comments.
- Provide latest information about technology and equipment.
Company profile
- In 2011,set up Shenzhen Eton Automation Equipment Co., Ltd In 2011,HT-12 series released.HT-E3 was completed research and development.
- In 2014,got“National high-tech enterprises" certification.HT-E8 released.
- In 2016,HT-F8/HT-F7 which professional for LED display and strip released. HT-T7 and HT-E9 released.
- In2018,HT-E5T/HT-E9T/ HT-D12 released. HT-E5S/E5D,HT-E8S/E8D new Magnetic linear motor multifunctional pick and place machine released
- In 2020, ETON Jiangxi intelligent manufacturing Park was completed. The multi-function pick and place machine RT-1/RT-2/RT-4 and the high- speed pick and place machine HT-X9 released.
Exhibition
Our products are exported to more than 20 countries overseas, such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.And we also participate in many abroad and domestic Exhibition.
FAQ
1.How many kinds of mounter are there in your comapny?
A:We can roughly divide it into two types, one is a special machine, the other is a multi-function machine.
2.Can you provide all machines on the compete product line for me?
A:We can offer all machines for you.
3:What is your delivery date?
The delivery date is about 20 days upon the full payment.
4:Does the price include nozzles and feeders?
A:We don't include nozzles and feeders,because each customer requires different nozzles and feeders.
5:Are you a factory or trading company?
A:We are a professional manufacturer of mounter.And we have our own brand mounter production line.
