Super- speed mounter with 34 heads 2700 mm for LED tube SMT pick and place machine
Super- speed mounter with 34 heads 2700 mm for LED tube SMT pick and place machine
Production description
Dual arm professional high-speed mounter, mounting 2-4 types of materials at the same time capacity reach 180000 CPH, which can mount flexible strip and led tube in a high speed.
Machine main features
- Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
- Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for RGB.
- Exclusive patent technology: Group picking and group mount placing.
Machine main parameter
| Model | HT-F7S |
| PCB length width |
Max: 1200*330mm Min: 100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and group placing |
| Mounting precision | ±0.02mm |
| Mounting speed | 150000-180000 CPH |
| No. of feeders station | 68 PCS |
| No. of head | 34PCS |
Machine application

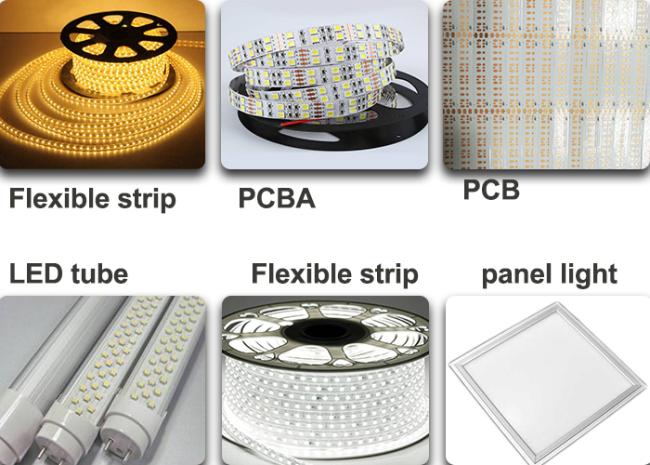

High speed pick and place machine which is for the 0.5m, 1m flexible strip, and led tube, panel light etc, here is the picture for your reference:
Service
Provide an excellent service to our customers as to enjoy a quality service of the whole process of buying our machine in transportation, usage etc. For sure, as an leading manufacturer of SMT machine we can provide whole line solution, and arranging our engineers to make training freely, enjoy a free up grade of the machine.
Here is some tip of our service:
Shipping and Delivery
As delivery of the goods which is the most important part for s convey the good to our clients, so that the way for delivery is a vital part.
Here are the three aspect for the transportation way:
FAQ
Q1. Whether you have professional engineers for installation of the machine in India?
A1. Yes, we have professional engineers in India to provide considerable service to our clients.
Q2. What is your actual speed of your products?
A2. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q3. Can you accept CFI as the quoted price?
A3. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q4. Is the machine easy to operate?
A4. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
