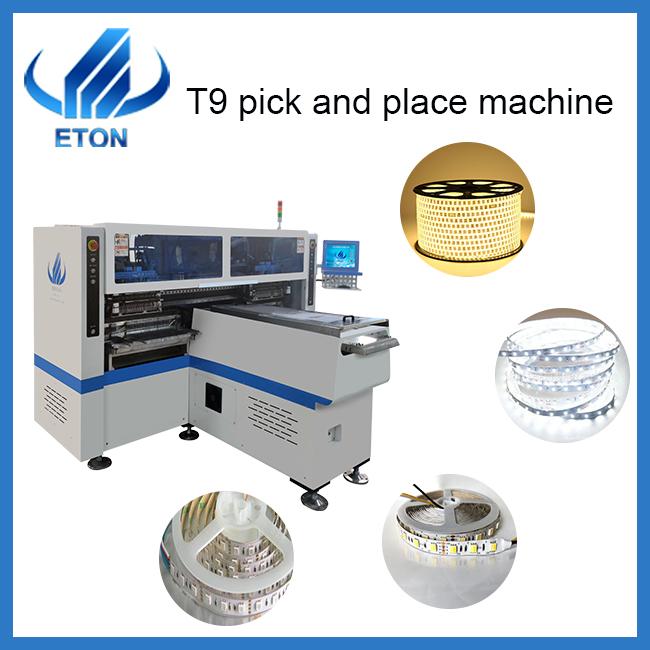

High Speed SMT Pick And Place Machine 250000CPH 68 Heads For Strip Light
high quality reach 25000CPH with 68 heads smt pick and place machine
Company introduction
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
ETON is the leading manufacturer of global opto-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. ETON obtains a number of intellectual property technologies, including 9 invention patent, 112 practical patents, 12 software copyrights.
Machine main parameter
| T9 | ||
| PCB | PCB length width | 250*any length |
| PCB thickness | 0.5-1.5mm | |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width | |
| Mounting mode | Group to pick and group to mount | |
| O.S. | System | Windows 7 |
| software | R&D independently | |
| Vision system | No. Of camera |
5 sets of imported camera (Vision alignment ,mark correction) |
| Mounting speed | 200000-250000CPH | |
| Electrical control | Independent research and development by ETON | |
| Feeding system | No. Of feeders stations | 68 PCS |
| No. Of nozzles | 68 PCS | |
Producing with 4 types materials at the same time with high capacity, available for 5 M, 50M or any length of flexible strip and roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:group to pick and group to mount.
Exhibition
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Package and delivery
FAQ
Do you have oversea after sale service?
Yes ,We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
How is the transportation?
By sea, by air and land transportation.
It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
