20 Heads High Speed SMD Pick And Place Machine For LED Light Production Line
Double module magnetic linear motor multifunctional pick and place machine
Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
| Technical parameter | |
| PCB | |
| PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| O.S. | |
| system | Windows7 |
| software | R&D independently |
| display | Touch screen monitor |
| input | Keyboard mouse |
| Feeding system | |
| No. of feeders station | Dual mode ,totally 40 |
| No.of nozzles | Dual mode,totally 16 |
| Feeding way | Electric feeder with double motor |

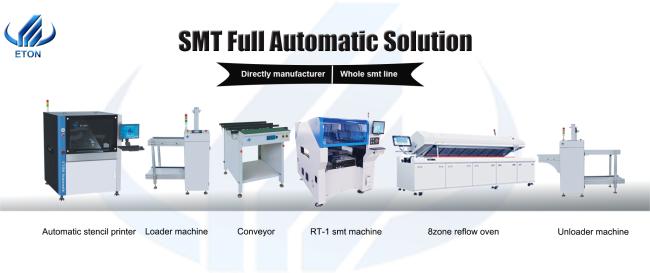

SMT production line
What are the features of SMT:
With high assembly density, small size and light weight of electronic products, the volume and weight of SMD components are only about one-tenth of traditional plug-in components. Generally, after SMT is adopted, the volume of electronic products is reduced by 40%~60%, and the weight is reduced by 60%~ 80%.
High reliability and strong anti-vibration ability. The defect rate of solder joints is low.
Good high frequency characteristics, reducing electromagnetic and radio frequency interference.
It is easy to realize automation and improve production efficiency. Reduce costs by 30%~50%. Save materials, energy, equipment, manpower, time, etc.
Our Partners
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.
Attention
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
After-sale Service
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
