LED Bulb/Tube/Flexible Strip SMT Mounting Machine 34 Head 180000CPH For LED 3014
LED Bulb/Tube/flexible strip Making SMT Mounting Machine 34 Head 180000CPH For LED 3014
Product Description:
1.It has 34PCS head and the mounting speed can reach 180000CPH.
2.The maximum PCB size is 1200*330mm.
3.Calibration automatically, high precision,available for RGB.
4.Group to take and group to mount
Advantages:
*Dual arm professional high-speed SMT machine.
*Producing 2-4 types materials at the same time.
*Vision alignment ,Mark correction.
*The mounting speed can reach 180000CPH.
*It can produce tube, LED flexible strip, panel light etc.
*Mounting components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers etc.
Specification:
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total weight | 1700kg |
| PCB size | Max:1200*330mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| Mounting height | ≤5mm |
| Mounting speed | 180000CPH |
| No.of head | 34PCS |
| Mounting precision | ±0.02mm |
Application:
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.Producing with two to four types materials at the same time with high capacity.
Apply to the panel light, LED flexible strip,tube,etc.

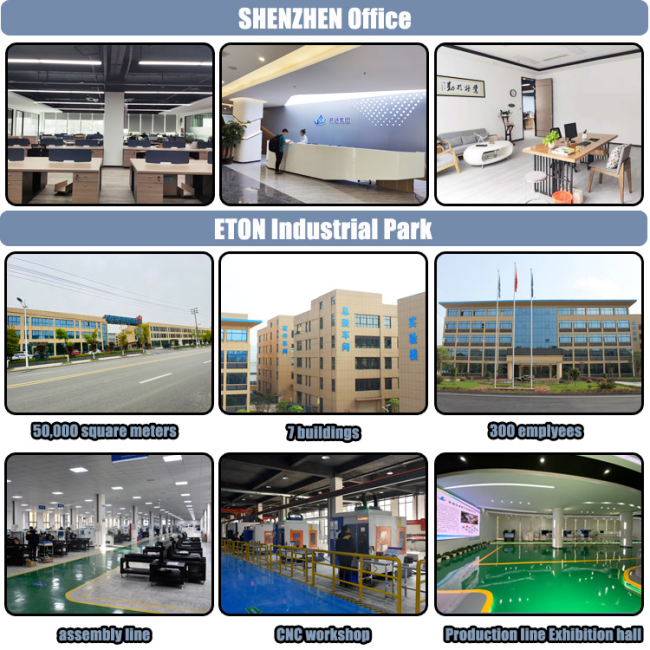

Company Introduction:
1.10 years development history.
2.Independent R&D Exclusive Patented technology.
3.80% large and listed LED factory are our client.
4.Top 1 in high-speed pick and place machine in China.
Exhibition:
Our company go to many countries to participates in the exhibition,such as Egypt, India,Turkey,Delhi, Pakistan.
Services:
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ:
Q: Are you a trade company or a manufacturer?
A:We are an experienced manufacturer of SMT. Our company has been established for ten years, the company has more than 300 employees, the company is a large-scale, is the top domestic enterprises
Q: What's your delivery date?
A: The delivery date is about 30 days upon the down payment.
Q: Will you be participate the exhibition around the world?
A: Yes, our company go to many countries to participates in the exhibition,such as Egypt, India, Turkey, Delhi, Pakistan. If you have a chance to visit, you can get to know our company and our products better.
