ETON T9-2S SMT Pick And Place Equipment High Speed For Flexible Strip
Newly branch High-speed any length flexible strip T9-2S pick and place machine
Machine description
Diverse functions, efficient production.High-speed modular head. Eton tech adjustable placement head, apply to 3014/3020/2835/5050/resister, capacitor, bridge rectifier etc. The optimal capacity can reach 500000CPH.
Machine feature
1. Unique design component leaking detection and individual component refill function
2. Component picking position can be adjusted according to PCB pad pitch, min 6.5mm.
3. Adjust the conveying platform according to various roll to roll strip, range 250±10mm, the max length range is 1M per cycle.
4. Flight recognition camera,no pause to detect the presence or absence of components, component adsorption state, prevent placement errors
5. Automatic production with identification data, correction and fill missing component automatically
Machine parameter
| Model | T9-2S |
| PCB size | 250*any length |
| PCB Clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail+four groups of placement heads |
| Display | LED display |
| No.of camera | 10 sets |
| Power | 380AC 50 HZ |

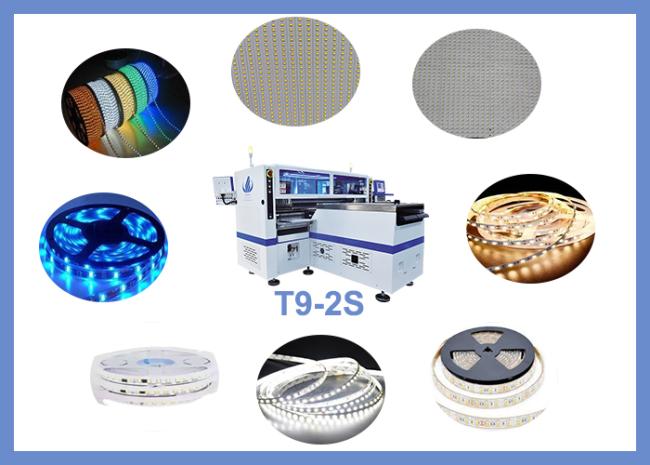

Application
High-speed professional pick and place machine, Suitable for mounting any length flexible strip and rigid PCB board.
Components range: LED3014/3020/2835/5050 and resistor, capacitor,bridge rectifier etc
Certificate
ETON obtains a number of intellectual property technologies, including 9 invention patents,12 software copyrights, 112 practical patents. ETON is rated as “Shenzhen high-tech enterprise”“Shenzhen TOP brand”etc.
Package
Our products are usually packed in vacuum wooden cases, which can better protect our products from damage and loss during transportation. The packing case is very strong. We will arrange delivery and packaging according to the needs of customers.
Exhibition
Our company participates in various exhibitions every year, such as Shanghai Munich exhibition, Guangzhou Guangya Exhibition, Chongqing led exhibition, Turkey exhibition, India Mumbai exhibition, India Delhi exhibition, Pakistan exhibition, Egypt exhibition, etc
FAQ
Q: Is hard to use these machines?
A: No, not at all. All our machine are automatic, you just type in the program and it will work. The operation is relatively simple and I believed that certainly learn in two days.
Q: if there is a problem with the machine,can it be repaired?
Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
Q: Is the machine free of charge?
A: Yes. Our warranty for the whole machine is one year, but in addition, we provide customers with free maintenance once or twice a year.
