50W capacity for 5M, 25M, 50M, 100M flexible strip SMT pick and place machine
50W capacity for 5M, 25M, 50M, 100M flexible strip SMT pick and place machine
Description

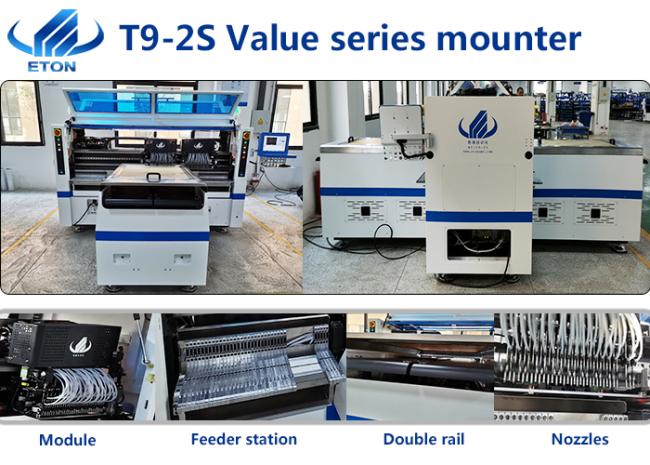

High speed modular heads T9-2S apply to LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. With unique design component leaking detection and individual component refill function, adjust the conveying platform according to various roll to roll strip, range 250±10 mm, the max length range is 1M per cycle.
| Model | T9-2S |
| Dimension | (L)3454*(W)3035*(H)1777 mm |
| Total weight | 3100 kg |
| PCB size | 250(±10)mm* Any length |
| PCB thickness | 0.1-0.5 mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail + Four groups of placement heads |
| No. of camera | 10 sets (Digital camera) |
| Software | R&D independently |
| Repeat precision | ±0.05 mm |
| Mounting height | ≦5 mm |
| Mounting speed |
Double side: 500,000 CPH Single side: 250,000 CPH (Optimum speed) |
| Components range | LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
| Power consumption | 9.6 KW |
| No. of feeder station | Double side: 136 PCS (Single side: 68 PCS) |
| No. of nozzles | Double side: 136 PCS (Single side: 68 PCS) |
