QFP 0201 SMT LED Lights Assembly Machine Fastest Pick And Place Machine For Power Driver
QFP 0201 smt machine led lights assembly machine fastest pick and place machine for power driver
Features of SMT pick and place machine
high perform and high versatility
higg speed multi modular head,Non replace modular head
apply to 0201~10mm tape reel package and IC tray feeder
Ultra-high-speed capability
Adopt high end magnetic linear motor,servo system,and multi function modular head,the capacity increased by 25% compared with traditional machine,optimum palcement speed reach 120000CPH.
High reliability
| PCB length width |
Double module&Double rail:MAX:500x300mm MIN:50x50mm Single module&Single rail:MAX:500x540mm MIN:50x50mm |
| Components |
0201Package size—40mm Mounting height 8mm |
| Mounting speed |
90000 CPH (Under the best conditions for our company) |
| Mounting precision | ±0.03mm(Repeat precision) |
| No. Of feeders station |
32PCS (Double material feeder, can load 64 trays of material) |
| Power | AC380 50Hz |
| Air supply | 0.4-0.6Mpa (4-6Kgf/㎡) |
| Vacuum detection | Independent vacuum detection of reclaiming material |
| Dimension | L 2795 X W 1497 X H 1687 |
| Total weight | 1700kg |

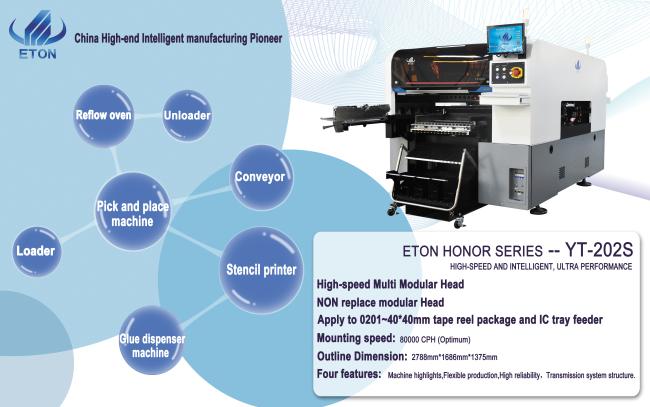

Pictures of pick and place machine
Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
ETON SMT machines

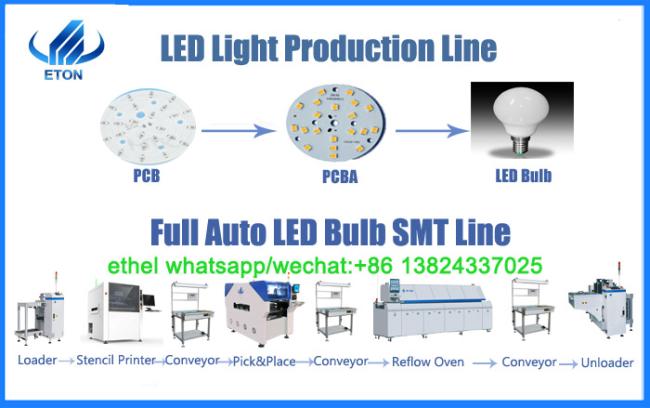

ETON are the manufacturer of SMT Machine,we can provide a whole SMT line solution and a whole SMT line machines.include PICK AND PALCE MACHINE,STENCIL PRINTER,REFLOW OVEN,CONVEYOR,loader machine,unloader machine,etc
FAQ
1.Q: Are you a trade company or a manufacturer?
2.We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
2. Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
3. Q: What is your payment terms?
100% payment before delivery or 50% deposit in advance and the rest before shipment.
4. Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
2. The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service.
3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
5.What are your advantages?
Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust
6.The products you are advertising are in stock?
A: The delivery date is about 20 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients .
7.How can I buy this machine from you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
