led lamp making machine of 68 heads full automatic led strip pick and place machine

Machine Parameter of led strip pick and place machine

Features of led strip pick and place machine

high-end magnetic linear motor , servo motor, stepper motor, ensure high mounting speed, high precision and high accuracy

reach 250000 CPH optimum mounting speed with 68 feeders station and 68 heads

Group to pick and group to mount, more sensitive and more intelligent

5 sets of digital cameras achieve vision alignment and mark correction

Software: R&D by ETON independently, freely upgrade whole lifetime

Apply to any length of LED flexible strip, such as 5M,10M,25M,50M, 100M and so on

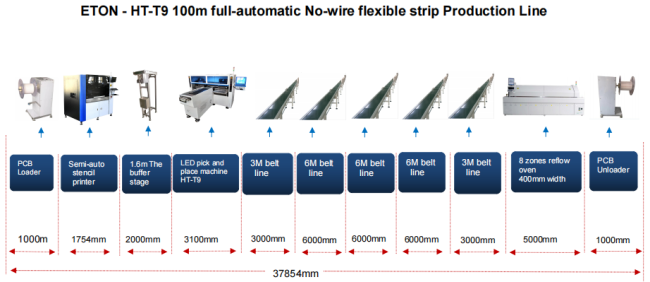

The full automatic Production Line of led strip pick and place machine

Automatic production line sticker to a certain extent of the accuracy is higher, because all the procedures are computer Settings, eliminate the error of human operation. In addition, the fully automatic production line is more labor-saving, usually one worker is enough.

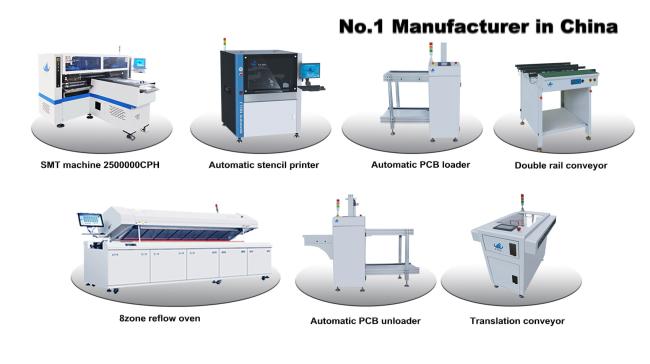

The SMT peripheral machines

We not only provide the SMT pick and place machine, but also provide SMT peripheral equipment, such as loader, stencil printer, conveyor, reflow oven, testing machine ( AOI, SPI, X-RAY )

We Provide the whole SMT production line and solution according our client’s requirement, we also support personal customization

Company profiles

3 series of SMT pick and place machine which is mounting all kinds of products(LED light, led display, electric board, power driver and so on

Big intelligent industrial park, 7 buildings and more than 500 employees,Strong manufacturing capacity, have our own industrial park, the area of up to 500000 square meters

133 patents: 9 invention patents, 112 practical patents, 12 software copyright

Export More than 20 countries, India, Egypt, Turkey, Russia, Brazil and so on.

Oversea office and engineers provide freely installation, debug and training door to door.

Clients and customer factory
