Flange type triple eccentric carbon steel butterfly valve PN16 DN150
The soft seal butterfly valve flange is novel, small and light. The butterfly plate adopts double eccentric, including fast and easy operation. The joint between the butterfly plate and the sealing ring, no friction and wear, long life, reliability and light printing management.

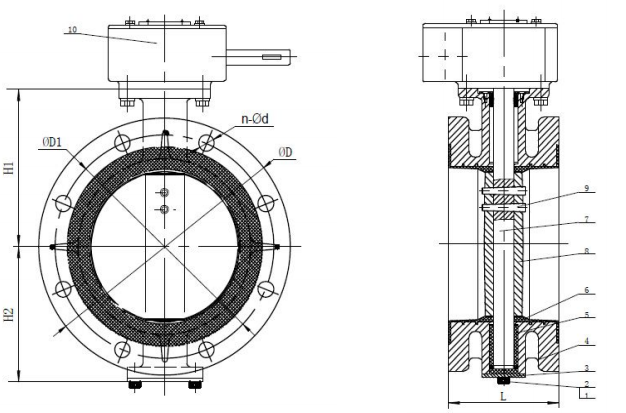

NO | Part Name | Meterial |
1 | Body | GG25,GGG40,GGG50,WCB |
2 | Disc | GGG40,CF8,CF8M,CF3M,AL-B |
3 | Stem | SS416/420,CF8,CF8M |
4 | Seat | EPDM/NBR |
5 | Packing | EPDM/NBR |
6 | Seat | PTFE |
7 | lock net | STEEL |
8 | jump ring | STEEL |
SIZE | ФD | PN10 | PN16 | H1 | H2 | L | Weight | ||
|
| ФD1 | n-Фd | ФD1 | n-Фd |
|
|
|
|
DN50 | 165 | 125 | 4-Ф18 | 125 | 4-Ф18 | 110 | 80 | 108 | 13 |
DN65 | 185 | 145 | 4-Ф18 | 145 | 4-Ф18 | 134 | 80 | 112 | 14 |
DN80 | 200 | 160 | 4-Ф18 | 160 | 8-Ф18 | 131 | 95 | 114 | 15 |
DN100 | 220 | 180 | 8-Ф18 | 180 | 8-Ф18 | 150 | 114 | 127 | 19 |
DN125 | 250 | 210 | 8-Ф18 | 210 | 8-Ф18 | 170 | 113 | 140 | 22 |
DN150 | 285 | 240 | 8-Ф23 | 240 | 8-Ф23 | 180 | 139 | 140 | 27 |
DN200 | 340 | 295 | 8-Ф23 | 295 | 12-Ф23 | 210 | 175 | 152 | 45 |
DN250 | 405 | 350 | 12-Ф23 | 355 | 12-Ф27 | 245 | 203 | 165 | 58 |
DN300 | 460 | 400 | 12-Ф23 | 410 | 12-Ф27 | 276 | 242 | 178 | 85 |
DN350 | 520 | 460 | 12-Ф23 | 470 | 12-Ф27 | 328 | 256 | 190 | 122 |
