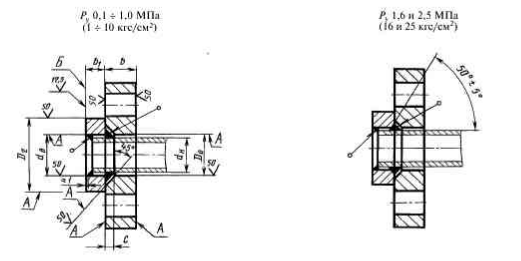

Loose flange (welding ring) GOST 12822-80
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
D | РN=1,6Mpa(16 kg/см‘) | Weight,kg | ||||||
d1 | d2 | D | b | b1 | c |
| ||
Plat | ring | |||||||
10 | 14 | 15 | 16 | 14 | 12 | 4 | 0.61 | 0.1 |
15 | 18 | 19 | 20 | 0.67 | 0.13 | |||
20 | 25 | 26 | 27 | 16 | 14 | 0,93 | 0.24 | |
25 | 32 | 33 | 34 | 5 | 1.1 | 0.31 | ||
32 | 38 | 39 | 41 | 18 | 16 | 1.68 | 0.46 | |
40 | 45 | 46 | 48 | 20 | 2.13 | 0.56 | ||
50 | 57 | 59 | 61 | 2.54 | 0.71 | |||
65 | 76 | 78 | 80 | 22 | 18 | 6 | 3.31 | 1.01 |
80 | 89 | 91 | 93 | 24 | 4.11 | 1.23 | ||
100 | 108(A) | 110 | 112 | 26 | 20 | 4.93 | 1.64 | |
114(Б) | 116 | 118 | 4.7 | 1.48 | ||||
125 | 133(A) | 135 | 138 | 28 | 6,56 | 2.18 | ||
140 (Б) | 142 | 145 | 6.23 | 1.94 | ||||
150 | 152 (A) | 154 | 157 | 22 | 8.48 | 2.98 | ||
159 (Б) | 161 | 164 | 8.09 | 2.67 | ||||
168 (B) | 170 | 173 | 7.56 | 2.27 | ||||
200 | 219 | 222 | 225 | 8 | 9.36 | 3.24 | ||
250 | 273 | 273 | 279 | 30 | 24 | 11 | 13.9 | 4.12 |
300 | 325 | 325 | 331 | 32 | 17.9 | 5.51 | ||
350 | 377 | 377 | 383 | 34 | 26 | 12 | 22.8 | 7.97 |
400 | 426 | 480 | 433 | 36 | 28 | 29.08 | 10.12 | |
500 | 530 | 530 | 537 | 42 | 30 | 49.26 | 16.86 | |
