Double Flanged Type Butterfly Valve
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
| Item | Part Name | Material |
| 1 | Stem | Zinc Plated Steel; |
| Stainless Steel: ASTM A276 Type 316. Type 410. Type 420; ASTM A582 Type 416; | ||
| 2 | Body | Cast Iron: ASTM A126CL. B . DIN1691 GG25. EN 1561 EN-GJL-200; GB12226 HT200; Ductile Cast Iron: |
| ASTM A536 65-45-12, DIN 1693 GG640, EN1563 EN-GJS-400-15. GB12227 QT450-10; | ||
| 3 | Disc | Ductile Cast lron(Nickel plated): |
| ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15. GB12227 QT450-10; Stainless Steel: ASTM A351 CF8. CF8M; CF3. CF3M; EN 1.4408, 1.4469; 1.4501; AL-Bronze: ASTM B148 C95400; | ||
| 4 | Seat | NBR. EPDM. Neoprene. PTFE. Viton; |
| 5 | End Cap | Cast Iron: ASTM A126CL. B .DIN 1691 GG25, EN 1561 EN-GJL-200; |
| Ductile Cast Iron: ASTM A536 65-45-12. DIN 1693 GGG40, EN1563 EN-GJS-400-15. | ||
| 6 | Bolt | Zinc Plated Steel; |
| 7 | Taper Pin | Stainless Steel: ASTM A276 Type 304, Type 316; EN 1.4501; |
| 8 | O-Ring | NBR. EPDM. Neoprene. Viton; |
| 9 | Bushing | PTFE, Lubricated Bronze; |
| 10 | Key | Carbon Steel |
»> Product Overview
Valves deslgned to comply with BS5155. Compatible with GB. DIN. BS and ANSI126/150 flanges. Face to face according to ISO 5752 basic series 13 (shortyDIN 3202 part 1 series F16. The characteristic of this type valve is to splice the rubber liner on the body, the strength higher and the seal closer for the seat. There is O-ring casted on the seal surface of the seat, negates need for flange gaskets. Available in size 2* to 48' Available with handles, manual gear operators,and electric or pneumatic actuators..

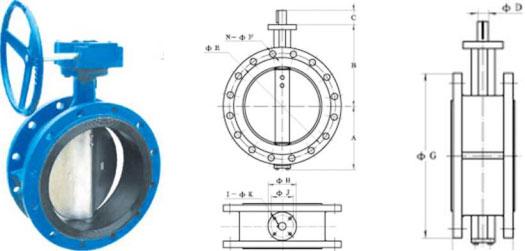

Dimensions List (mm)
| Inch | A | B | c | D | E | N-F | G | H | J | l-K | L |
| 2 | 70 | 130 | 32 | 12.7 | 120.7 | 4- « | 152 | 90 | 70 | 4- 95 | 108 |
| TA | 75 | 140 | 32 | 12.7 | 139.7 | 4- 19 | 178 | 90 | 70 | 4- 95 | 112 |
| 3 | 85 | 150 | 32 | 12.7 | 152.4 | 4- 19 | 191 | 90 | 70 | 4- 95 | 114 |
| 4 | 104 | 160 | 32 | 15.9 | 190.5 | 8- 19 | 229 | 90 | 70 | 4- 95 | 127 |
| 5 | 112 | 180 | 32 | 19.1 | 215.9 | 8- 22 | 254 | 90 | 70 | 4- 95 | 140 |
| 6 | 130 | 200 | 32 | 19.1 | 241.3 | 8- 22 | 279 | 90 | 70 | 4- 95 | 140 |
| 8 | 160 | 230 | 38 | 22.2 | 298.5 | 8- 22 | 343 | 125 | 102 | 4- 115 | 152 |
| 10 | 194 | 260 | 38 | 28.6 | 362 | 12- 25 | 406 | 125 | 102 | 4- 115 | 165 |
| 12 | 220 | 300 | 38 | 31.8 | 431.8 | 12- 25 | 483 | 125 | 102 | 4- 115 | 178 |
| 14 | 270 | 360 | 45 | 31.8 | 476.3 | 12- 29 | 533 | 125 | 102 | 4- 115 | 190 |
| 16 | 305 | 390 | 51 | 33.3 | 539.8 | 16- 29 | 597 | 210 | 165 | 4- 22 | 216 |
| 18 | 332 | 420 | 51 | 38.1 | 577.9 | 16- 32 | 635 | 210 | 165 | 4- 22 | 222 |
| 20 | 362 | 470 | 64 | 41.3 | 635 | 20- 32 | 699 | 210 | 165 | 4- 22 | 229 |
| 24 | 415 | 540 | 70 | 50.8 | 749.3 | 20- 35 | 813 | 210 | 166 | 4- 22 | 267 |
| 28 | 515 | 565 | 72 | 55 | — | — | — | 300 | 254 | 8- 18 | 292 |
| 32 | 565 | 640 | 72 | 55 | — | — | — | 300 | 254 | 8- 18 | 318 |
| 36 | 605 | 680 | 77 | 75 | 1085.9 | 32- 41 | 1168 | 300 | 254 | 8- 18 | 330 |
| 40 | 685 | 760 | 85 | 85 | — | — | — | 300 | 254 | 8- 18 | 410 |
| 48 | 790 | 880 | 150 | 92 | 1422.4 | 44-41 | 1511 | 350 | 298 | 8- 22 | 470 |
