ANSI stainless steel ball valve flange

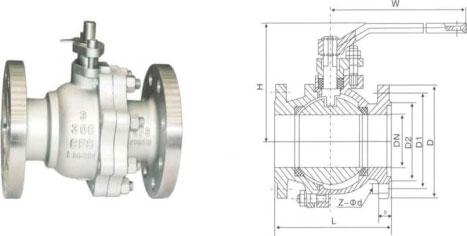

»> Product Overview
Ball valve flange has a rotation of 90 degrees, and the plug is a sphere, with a circular hole or passage through its axis. The ball valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium. It only needs to rotate the 90 degree operation and small rotational torque to close the tight. Ball valves are best suited for switches and cut-off valves, but recent developments have designed the ball valves to be used for throttling and controlling flow, such as V ball valves.
Standards
Design and manufacture as API600,ANSI B16.34
Fane to face dimensions as ANSI B16.10 End
flange dimenision as ANSI B16.5
Pressure-temperature rating as ANSI B16.34
Pressure test as API 598
Test Pressure
| Test Item | Shell Test | Seal Test | Back Seal Test | Air Seal Test | |||||
| Medium | Water | Air | |||||||
| Unit | MPa | lbf/in2 | MPa | lbf/in2 | MPa | lbf/in2 | MPa | lbf/in2 | |
| 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | |||
| Pressure (Class) | 300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | ||
| 400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | 0.5-0.7 | 60〜100 | |
| 600 | 15.3 | 2225 | 11.2 | 1630 | 11.2 | 1630 | |||
| 900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||
| Name | Material | ||||||||
|
Body Bonnet |
A216 WCB |
A352 LCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
| Ball | A182 F6 | A182 F304 | A182 F316 | A182 F304L | A182 F316L | ||||
| Stem | A182 F6 | A182 F304 | A182 F316 | A182 F304L | A182 F316L | ||||
| Hand Handle | KTH350-10 | ||||||||
| Bonnet Bolt | A193-B7 A320-L7 , | A193-B8 | |||||||
| Nut | A194-2H A194-7 | A194-8 | |||||||
