Double ball flexible rubber joint(compensator) PN16

Name: Double ball flexible rubber joint(compensator) PN16
Brand: Hebei Peiying Valve Industry Co.,Ltd.

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

The ball material	(EPDM/NBR/VITON/PTFE)
Jointing material	Carbon steel
Connection Type	Flange
Pressure	16
Working Temperature	-40ºC ~ +200ºC
Ambient temperature	According to the material requirement

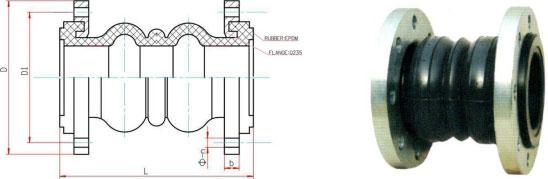

Ду, мм		L	п	Фd	D1	Extension	Compression	HorizontaHorizontal displacement	Deflexion angle
50	2"	165	4	18	125	25	50	45	35
65	2-1/2	170	4	18	145	25	50	45	35
80	3	175	8	18	160	35	50	45	35
100	4	225	8	18	180	35	50	38	35
125	5	225	8	18	210	35	50	38	35
150	6	225	8	22	240	35	50	38	35
200	8	325	12	22	295	35	60	30	35
250	10	325	12	26	355	35	60	30	35
300	12	325	12	26	410	35	60	30	20
350	14	325	16	26	470	35	45	28	20
400	16	330	16	30	525	35	45	28	20
450	18	330	20	30	585	35	45	28	20
500	20	340	20	33	650	35	45	28	20
600	24	400	20	36	770	35	45	28	20
