EUR Flange

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Product Description

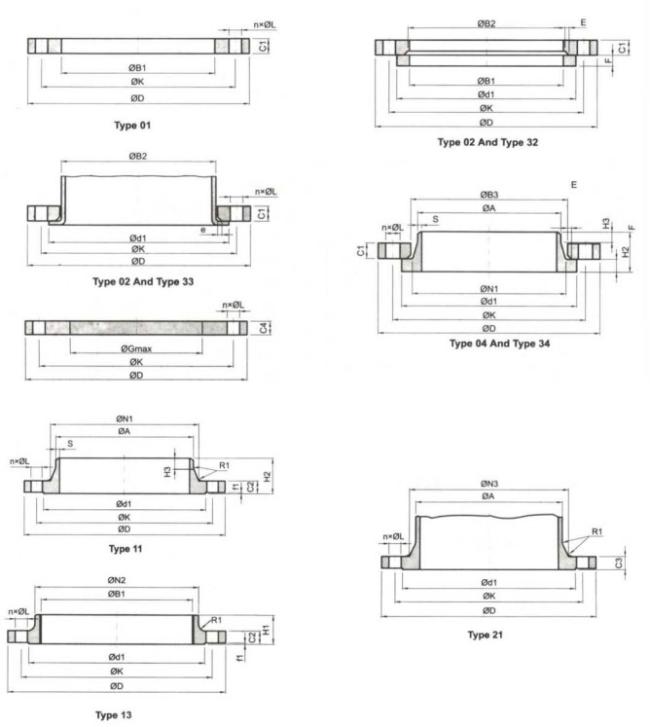

EN1092-1 PN10

DN	d 1	f 1	D		L	n	A	B1	B2	B3	C1	C2	C3	C4	E	F	Gmax	H1	H2	H3	N1	N2	N3	R1	s
			Type of Flange											Type of Flange
			01,02,04,05 11,12,13,21				11	1	2	4	1	11	21	05	02 04	32 34	5	12 13	11 34	11 34	11 34	12 13	21	11 12 13 21	11 34
							21	12			2	12
							34	32			4	13
10	40	2	90	60	14	4	17.2	18	21	31	14	16	16	16	3	12	-	22	35	6	28	30	28	4	1.8
15	45		95	65	14	4	21.3	22	25	35	14	16	16	16	3	12	-	22	38	6	32	35	32	4	2
20	58		105	75	14	4	26.9	27.5	31	42	16	18	18	18	4	14	-	26	40	6	40	45	40	4	2.3
25	68		115	85	14	4	33.7	34.5	38	49	16	18	18	18	4	14	-	28	40	6	46	52	50	4	2.6
32	78		140	100	18	4	42.4	43.5	47	59	18	18	18	18	5	14	-	30	42	6	56	60	60	6	2.6
40	88		150	110	18	4	48.3	49.5	53	67	18	18	18	18	5	14	-	32	45	7	64	70	70	6	2.6
50	102		165	125	18	4	60.3	61.5	65	77	19	18	18	18	5	16	-	28	45	8	74	84	84	5	2.9
65	122		185	145	18	8	76.1	77.5	81	96	20	18	18	18	6	16	55	32	45	10	92	104	104	6	2.9
80	138		200	160	18	8	88.9	90.5	94	108	20	20	20	20	6	16	70	34	50	10	105	118	120	6	3.2
100	158		220	180	18	8	114.3	116	120	134	22	20	20	20	6	18	90	40	52	12	131	140	140	8	3.6
125	188		250	210	18	8	139.7	141.5	145	162	22	22	22	22	6	18	115	44	55	12	156	168	170	8	4
150	212		285	240	22	8	168.3	170.5	174	188	24	22	22	22	6	20	140	44	55	12	184	195	190	10	4.5
200	268		340	295	22	8	219.1	221.5	226	240	24	24	24	24	6	20	190	44	62	16	234	246	246	10	6.3
250	320		395	350	22	12	273	276.5	281	294	26	26	26	26	8	22	235	46	68	16	292	298	298	12	6.3
300	370		445	400	22	12	323.9	327.5	333	348	26	26	26	26	8	22	285	46	68	16	342	350	348	12	7.1
350	430		505	460	22	16	355.6	359.5	365	400	28	26	26	26	8	22	330	53	68	16	385	408	408	12	7.1
400	482		565	515	26	16	406.4	411	416	450	32	26	26	26	8	24	380	57	72	16	440	456	456	12	7.1
450	532		615	565	26	20	457	462	467	498	36	28	28	28	8	24	425	63	72	16	488	502	502	12	7.1
500	585		670	620	26	20	508	513.5	519	550	38	28	28	28	8	26	475	67	75	16	542	559	559	12	7.1
600	685		780	725	30	20	610	616.5	622	650	42	28	34	34	8	26	575	75	80	18	642	658	658	12	7.1

EN1092-1 PN16

DN	d 1	f 1	D		L	n	A	B1	B2	B3	C1	C2	C3	C4	E	F		Gmax		H1		H2	H3	N1	N2	N3	R1	s
			Type of Flange											Type of flange
			01,02,04,05 11,12,13,21				11	1	2	4	1	11	21	05	02 04		32 34		5		12 13	11 34	11 34	11 34	12 13	21	11 12 13 21	11 34
							21	12			2	12
							34	32			4	13
10	40		90	60	14	4	17.2	18	21	31	14	16	16	16	3		12		-		22	35	6	28	30	28	4	1.8
15	45		95	65	14	4	21.3	22	25	35	14	16	16	16	3		12		-		22	38	6	32	35	32	4	2
20	58		105	75	14	4	26.9	27.5	31	42	16	18	18	18	4		14		-		26	40	6	40	45	40	4	2.3
25	68		115	85	14	4	33.7	34.5	38	49	16	18	18	18	4		14		-		28	40	6	46	52	50	4	2.6
32	78		140	100	18	4	42.4	43.5	47	59	18	18	18	18	5		14		-		30	42	6	56	60	60	6	2.6
40	88		150	110	18	4	48.3	49.5	53	67	18	18	18	18	5		14		-		32	45	7	64	70	70	6	2.6
50	102		165	125	18	4	60.3	61.5	65	77	19	18	18	18	5		16		-		28	45	8	74	84	84	5	2.9
65	122		185	145	18	8	76.1	77.5	81	96	20	18	18	18	6		16		55		32	45	10	92	104	104	6	2.9
80	138		200	160	18	8	88.9	90.5	94	108	20	20	20	20	6		16		70		34	50	10	105	118	120	6	3.2
100	158		220	180	18	8	114.3	116	120	134	22	20	20	20	6		18		90		40	52	12	131	140	140	8	3.6
125	188		250	210	18	8	139.7	141.5	145	162	22	22	22	22	6		18		115		44	55	12	156	168	170	8	4
150	212		285	240	22	8	168.3	170.5	174	188	24	22	22	22	6		20		140		44	55	12	184	195	190	10	4.5
200	268		340	295	22	12	219.1	221.5	226	240	26	24	24	24	6		20		190		44	62	16	235	246	246	10	6.3
250	320		405	355	26	12	273	276.5	281	294	29	26	26	26	8		22		235		46	70	16	292	298	296	12	6.3
300	378	2	460	410	26	12	323.9	327.5	333	348	32	28	28	28	8		24		285		46	78	16	344	350	350	12	7.1
350	438		520	470	26	16	355.6	359	365	400	35	30	30	30	8		26		330		57	82	16	390	400	410	12	8
400	490		580	525	30	16	406.4	411	416	454	38	32	32	32	8		28		380		63	85	16	445	456	458	12	8
450	550		640	585	30	20	457	462	467	500	42	40	40	40	8		30		425		68	87	16	490	502	516	12	8
500	610		715	650	33	20	508	513.5	510	556	46	44	44	44	8		32		475		73	90	16	548	559	576	12	8
