Double Ball Air Valves PN16 DN80
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Performance Specification
| Norminal Pressure | 1.6MPa |
| Test Medium | water |
| Shell Test Pressure | 24.0Bar |
| Seal Test Pressure | 17.6Bar |
| Working Temperature | ≤80°C |
Product Overview
Air vlaves are applied on the water pipelines, as the equipment to exclude the gas in pipelines, it enhances the efficiency of water transport and protect the pipelines from transformation and broke.When the pipeline under negative pressure, this valve will suction air automatically to prevent the pipeline broken. This valve has big gas displacement for double airvents, it owns maintenance valve, close it when repair, then it can be on-line overhaul.

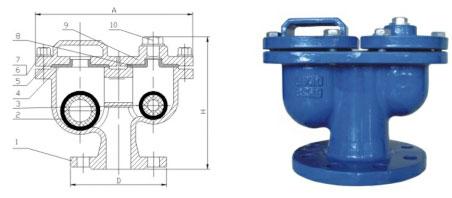

Main Connection Dimensions
| Diameter pressure | A | B | D | H |
| DN40-PN16(PN25) | 250 | 140 | 150 | 210 |
| DN50-PN16(PN25) | 250 | 140 | 165 | 210 |
| DN65-PN16(PN25) | 325 | 140 | 185 | 210 |
| DN80-PN16(PN25) | 325 | 180 | 200 | 250 |
| DN100-PN16 | 325 | 180 | 220 | 275 |
| DN100-PN25 | 325 | 180 | 235 | 275 |
| DN200-PN16 | 615 | 330 | 340 | 470 |
The Major Parts Materia
| NO. | Name | Material |
| 1 | Body | GGG50/GG25 |
| 2 | Big Float Ball | ABS |
| 3 | Little F I oat Ball | ABS |
| 4 | Big Float Ball Seal Seat | NBR |
| 5 | Big Float Ball Seal Cover | GGG50/GG25 |
| 6 | Bolt | Galvanized |
| 7 | Gasket | Galvanized |
| 8 | Little Float Ball Seal Seat | NBR |
| 9 | Little Float Ball Seal Cover | GGG50/GG25 |
| 10 | Cock | 2Cr13 |
