Product Description
Product Overview
Foot valves are consists of valve body, bonnet, disc,sealing ring and gasket and other ect parts, the disc types are divided in to single disc, double disc and multi-disc. After installing the foot valves on the pipes,liquid medium flow to the body from bonnet, the liquid pressure act on disc to make it open,when the medium pressure in body change or disappear,the disc will close to prevent medium backflow.

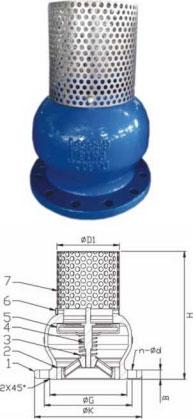

The Major Parts Material
| NO. | Name | Material |
| 1 | Body | GGG50 |
| 2 | Base | GGG50 |
| 3 | Spring | SS304 |
| 4 | Stem | 2Cr13 |
| 5 | Disc | GGG50+EPDM |
| 6 | Bolt | SS304 |
| 7 | Sreen | SS304 |
Main Connection Dimensions
| DN | D | D1 | K | H | B | N-OD | ||
| PN10 | PN16 | PN10 | PN16 | |||||
| 50 | 165 | 99 | 125 | 190 | 19 | 4-49 | ||
| 65 | 185 | 118 | 145 | 210 | 19 | 4-<|>19 | ||
| 80 | 200 | 132 | 160 | 240 | 19 | 4-<t>19 | ||
| 100 | 220 | 156 | 180 | 250 | 19 | 8-4>19 | ||
| 125 | 250 | 184 | 210 | 310 | 19 | 8-19 | ||
| 150 | 285 | 211 | 240 | 370 | 19 | 8-4)23 | ||
| 200 | 340 | 266 | 295 | 450 | 20 | 8-<|>23 | 12-<|>23 | |
| 250 | 405 | 319 | 350 | 355 | 470 | 22 | 12-23 | 12-4)28 |
| 300 | 460 | 378 | 400 | 410 | 500 | 25 | 12-23 | 12-4)28 |
