Australian newport musque architectural steel structure column

Project name:  Australian Newport musque architectural steel structure column

Paint:  Epoxy rich zinc primer, Epoxy mio barrior middle paint, Polyurethane top coat. DFT 275um

Total weight:26,000kgs

Total value: 51,000usd

All the processing must be met with AS/NZS 1554.5:2004. and all the material must be G350 minimum standard. There are 2 kinds of post, total quantity is 1840 pcs. all the welding line will be 100% tested by ulstrosonic machine. Third party inspection will be neccessary.

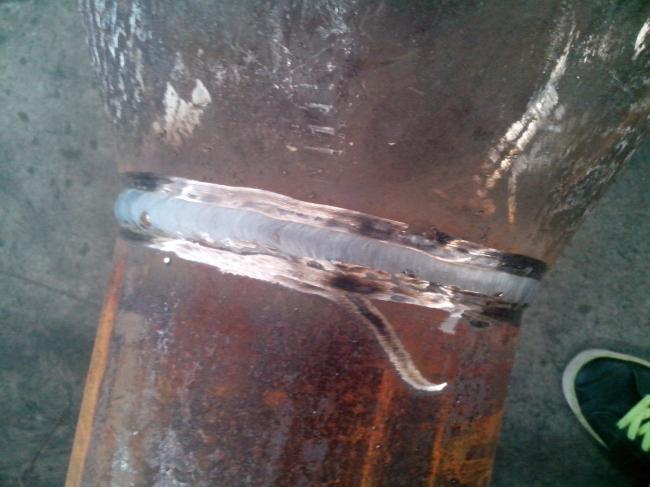

• All the welding line must be clean. Ensure NO porosity/No Crators / No Cracks
• All the raw material used to produce welded SHS ( square tube) must have certificate and third party inspect. then could be allowed to produce SHS.
• All the SHS (square tube), must size tolerance must be within 1mm. all the corner must be same. welding line must be clean
• Material cutting must be very smooth. flame gas must be strong enough. No ruffle
• Slot must be smooth, No notch. and the all the edge must be radiused to 2mm .
• Welding must be groove-weldjoint , Slope angle ≥30° 5mm distance between SHS and base plate.
