175mm Backward Curved Centrifugal Fan Air Purification System Parts
Technical Parameter
Reference based on the shape and size of outlet, which helps you to quickly select the best choice for your installation.
Example: If your spin room fitted to impeller diameter Ø 225 mm, outlet size 63 mm, voltage 230V, 2 poles motor, please choose model FJC2E22563
When you look for centrifugal fan of dual voltage 230 V / 400 V, 4 poles motor, spin room fitted to impeller diameter Ø 225 mm, please choose model FJC4ED225
We can customize your unconventional products.
Motor
Cage type capacitor structure external rotor motor
Impeller
Black PA nylon one-time injection moulding
Allowable environment temperature and humidity range:(under unconcretionary condition)
-40 ~ +80 (temperature) 0% ~ 95% (humidity)
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F,
Protection Grade
IP44

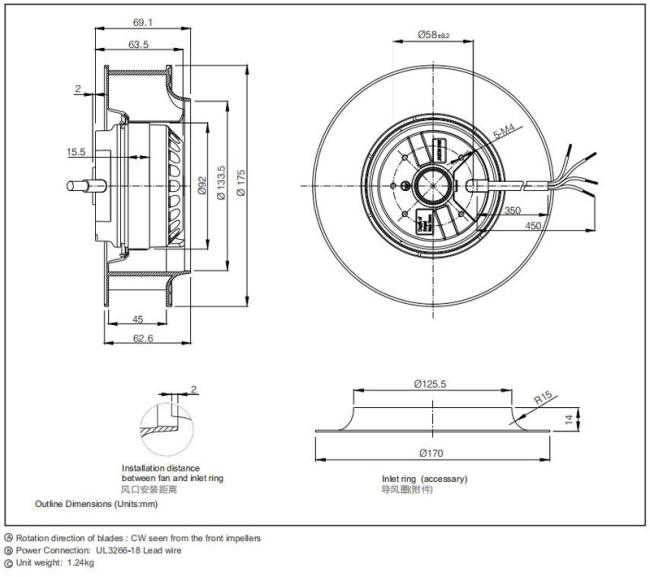

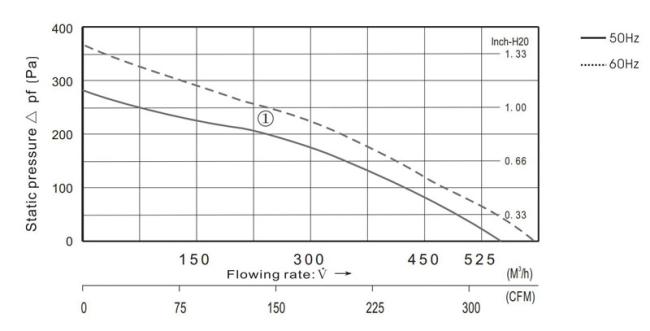

C2E-175.45C
| Type | Motor | Rated Voltage | Frequency | current | Power | Speed | Max Air Flow | Static Pressure | Noise | Curve | Capacitor Motor | |
| V | Hz | (A) | (W) +10% -20% |
(min-1) | CFM | m3/h | (Pa) | (dB) | (μF) | |||
| C2S-175.45C | M2S9201-AF | 115 | 50 | 0.57 | 56 | 2500 | 324 | 550 | 280 | 58 | ① | 5.0/250 |
| 60 | 0.53 | 59 | 2850 | 348 | 590 | 370 | 61 | |||||
| C2E-175.45C | M2E9201-AF | 230 | 50 | 0.27 | 56 | 2500 | 324 | 550 | 280 | 58 | 1.5/450 | |
| 60 | 0.28 | 59 | 2850 | 348 | 590 | 370 | 61 | |||||
| C2D-175.45C | M2D9201-AF | 380 | 50 | 0.16 | 57 | 2550 | 296 | 500 | 270 | 59 | 0.5/630 | |
| 60 | 0.17 | 64 | 2900 | 325 | 550 | 350 | 62 | |||||

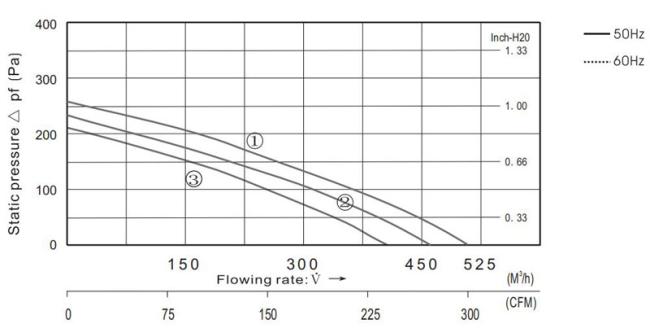

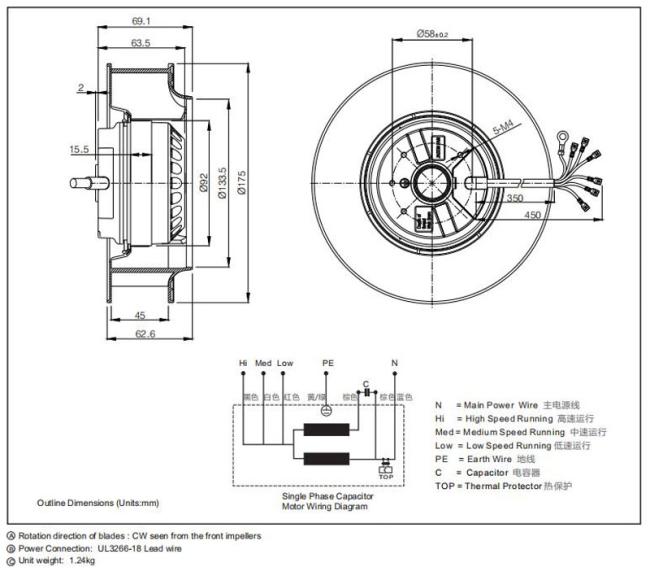

C2E-175.45TS
| Type | Motor | Rated Voltage | Frequency | current | Power | Speed | Max Air Flow | Static Pressure | Noise | Curve | Capacitor Motor | |
| V | Hz | (A) | (W)+10%-20% | (min-1) | CFM | m3/h | (Pa) | (dB) | (μF) | |||
| C2E-175.45TS | M2E9201-TS |
240
|
50 | 0.22 | 53 | 2600 | 296 | 500 | 260 | 62 | ① | 2.0/450 |
| 50 | 0.20 | 44 | 2380 | 270 | 459 | 240 | 60 | ② | ||||
| 50 | 0.20 | 41 | 2140 | 242 | 410 | 210 | 58 | ③ | ||||
