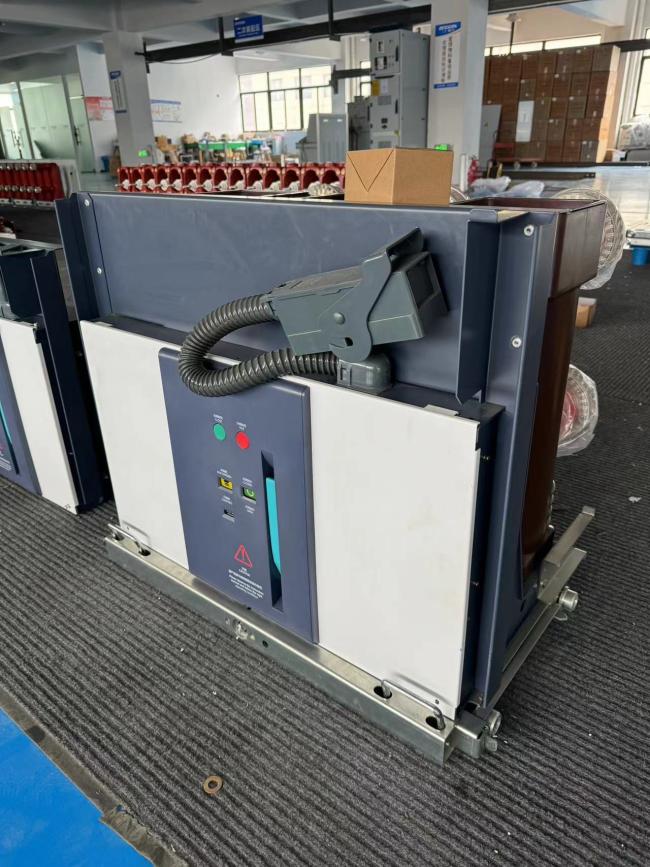

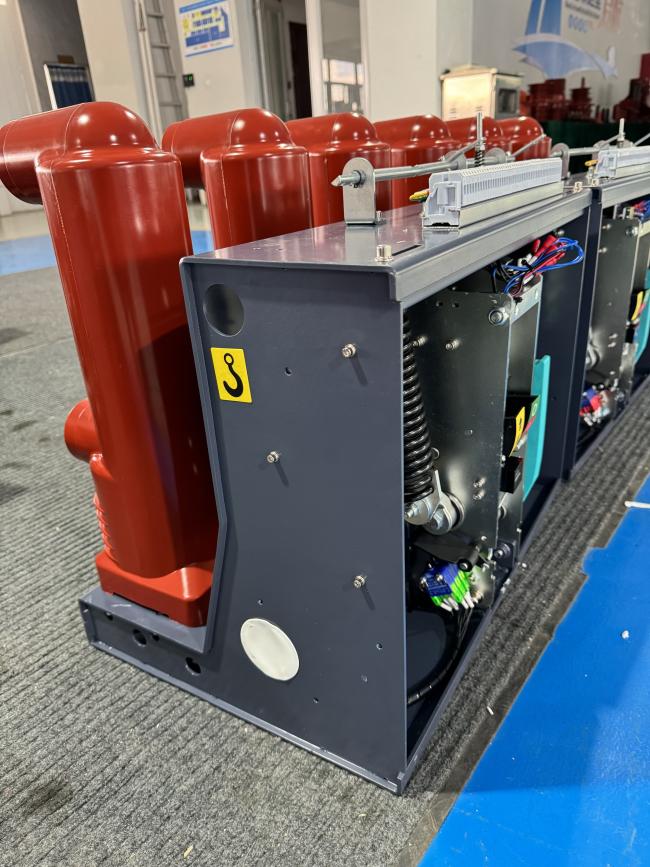

630A-1250A Rated Short Circuit Closing Current Vacuum Circuit Breaker Superior Protection

Product Description:

Vacuum Circuit Breaker is a kind of indoor switchgear, which uses vacuum as the arc extinguishing medium. It is suitable for 50Hz/60Hz rated frequency. The rated operation sequence is 0.3s-180s-180s. Its rated short-circuit opening current could be 50kA/ 63kA/ 80kA/ 100kA/ 125kA/ 160kA/ 200kA/ 250kA/ 315kA/ 400kA, while the rated short-circuit closing times is 20 times. The rated short-circuit closing current is 25kA/ 31.5kA/ 40kA/ 50kA/ 63kA/ 80kA/ 100kA/ 125kA/ 160kA/ 200kA. Vacuum Circuit Breaker, also known as VCB, has the advantages of small volume, light weight, quick make-and-break operation, and long service life. It is widely used in power plants, substations, industrial and mining enterprises.

Features:

• Product Name: Vacuum Circuit Breaker
• Rated short-circuit making current: 50kA/ 63kA/ 80kA/ 100kA/ 125kA/ 160kA/ 200kA/ 250kA/ 315kA/ 400kA
• Rated short-time withstand current: 25kA/ 31.5kA/ 40kA/ 50kA/ 63kA/ 80kA/ 100kA/ 125kA/ 160kA/ 200kA
• Rated short-circuit opening times: 20 Times
• Rated operation sequence: 0.3s-180s-180s
• Rated short-circuit breaking times: 20 Times
• Suitable for indoor switchgear
• High voltage vacuum circuit breaker

Technical Parameters:

Applications:

Qiupu Vacuum Circuit Breaker (Model Number: 0011011) is designed for indoor switchgear applications with AC high voltage and AC low voltage. It has a place of origin from Wenzhou, and features a rated frequency of 50Hz/60Hz. It offers a rated short-circuit closing times of 20 Times and rated current of 630A/ 1250A/ 1600A/ 2000A/ 2500A/ 3150A/ 4000A/ 5000A/ 6300A. The VCB is also designed for a rated peak withstand current of 50kA/ 63kA/ 80kA/ 100kA/ 125kA/ 160kA/ 200kA/ 250kA/ 315kA/ 400kA and rated short-circuit breaking current of 25kA/ 31.5kA/ 40kA/ 50kA/ 63kA/ 80kA/ 100kA/ 125kA/ 160kA/ 200kA. This Vacuum Circuit Breaker is designed for high safety and reliability in various applications.

Customization:

We provide customized Vacuum Circuit Breaker (VCB) service with high voltage for your needs.

• Brand Name: qiupu
• Model Number: 0011011
• Place of Origin: wenzhou
• Rated operation sequence: 0.3s-180s-180s
• Rated short-circuit closing times: 20 Times
• Rated short-circuit closing current: 25kA/ 31.5kA/ 40kA/ 50kA/ 63kA/ 80kA/ 100kA/ 125kA/ 160kA/ 200kA
• Rated short-circuit opening current: 50kA/ 63kA/ 80kA/ 100kA/ 125kA/ 160kA/ 200kA/ 250kA/ 315kA/ 400kA
• Rated voltage: 6kV/10kV/12kV/24kV/36kV

Support and Services:

Vacuum circuit breakers provide technical support and services to customers. These services include installation and commissioning, troubleshooting and repair, and periodic preventive maintenance. Our technical support team is available 24/7 to answer questions related to installation, operation, maintenance and repair of our products. We also provide training on the use of our products and on the proper maintenance of vacuum circuit breakers. We also offer a range of spare parts and accessories, as well as emergency repairs and replacements.
