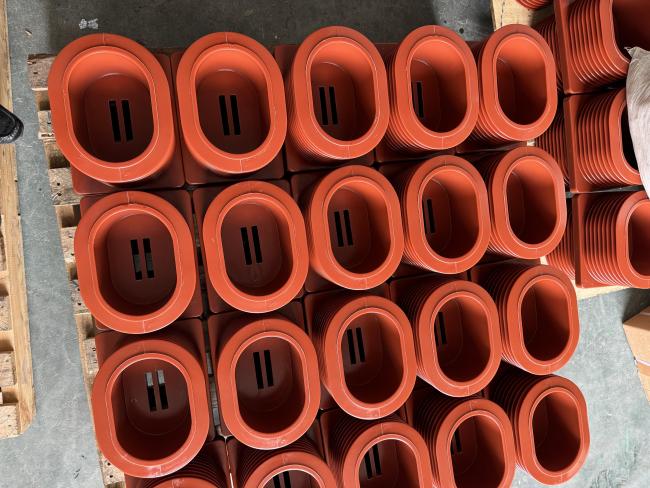

IEC Approved Cast Resin insulator Switchgear Through Wall Bushing 140X200X230mm

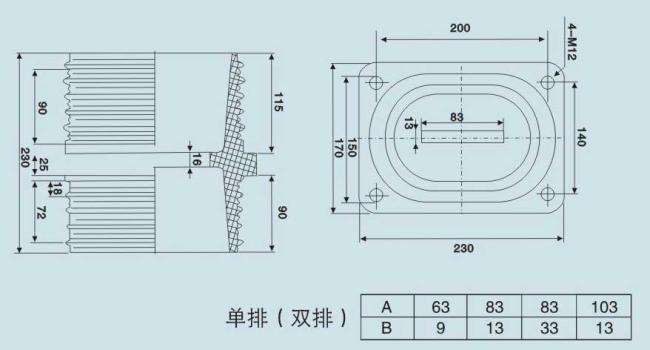

TG3-12Q/140X200X230 Cating Resin insulator Spout Wall Bushing with KYN28-12
The temperature rise of the end of the contact box at the end of the line under long-term operation does not exceed 65 ℃ under the rated electricity;
The experience of lead-out final call not more than 65 °C if the contact box is used for long time in rate Current con The wall-piercing sleeve is used to increase the insulation function of the mother-row in the cabinet and play a certain supporting role. In the middle, in the end.
3) Insulators only act as support, sometimes using a belt point sensor directly instead of an insulator as well as as as sensors.
| Current | Bus-bar |
| 630A | 70*10 |
| 1250A | 133*18 |
