Single Shaft Shredder Machine with 220-400mm shaft diameter SKD-II blade
Single Shaft Shredder machine
for industrial hard material,die head,big pipes
This type of single shaft shredder applicable to shred solid materials like plastic, rubber,fiber, paper, wood, electrical components and cable which are difficult to shred. For example, the sideline plastics, toe gum, hardboard, electronic board, wood, plastic barrel etc.
Teeth are DC53 steel. Stator knives are D2 steel, and if it also can be deisigned as your requirement.
Single Shaft Shredder have below Characteristics:
• The main electronic controls are a combination of Siemens and Schneider.
• Microcomputer technology incorporating rotator speed variations with start, stop
and reverse features.
• Automatic reverse sensors to protect the machine against over loading and jamming.
• Engineered using split bearing block technology so the blades can be changed quickly and efficiently.
• Specifically designed rotor to be extremely wear resistant.
• Rotor teeth can be rotated 4 times before they need changing, lowering running costs and reducing down time.
• Extremely versatile machine able to process a number of different materials
• Machinery protection, according with the European CE standard.
MainTechnical Parameter of single shaft shredder:
| Model | ST1-600 | ST1-800 | ST1-1000 | ST1-1200 |
| Push Power(kw) | 1.5 | 2.2 | 2.2 | 5.5 |
|
Mainmotor power (kw) |
18.5 | 37 | 37 | 55 |
| Rotary blade | 28 | 38 | 48 | 58 |
| Stationary blade | 2 | 2 | 4 | 4 |
| Shaft diameter(mm) | 220 | 400 | 400 | 400 |
| Rotate speed(r/min) | 90 | 85 | 80 | 75 |

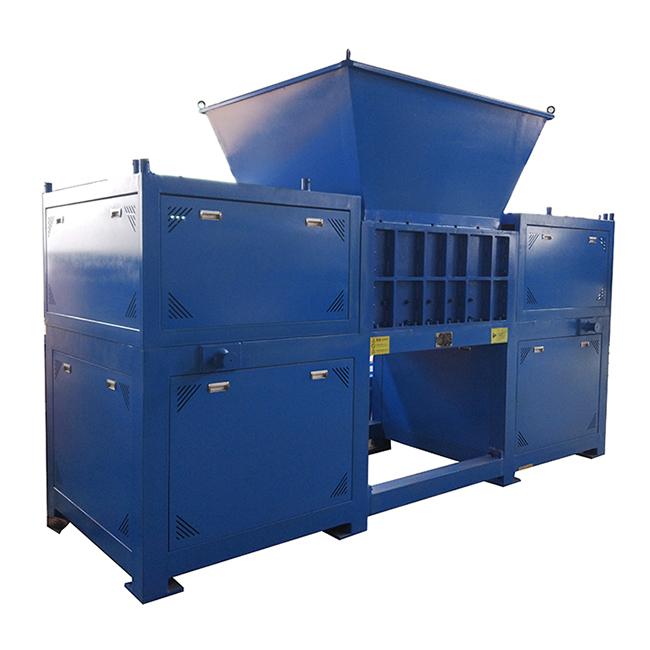

MainTechnical Parameter of Double shaft shredder:
| Model | Power(KW) | Number of revolving knife |
thickness of knife (mm) |
Diameter of knife (mm) |
Number of knife |
Dimension of crushing chamber (mm) |
Output (kg/h) |
| S2-600 | 11 | 12 | 50 | 280 | 5 | 600*550 | 300-800 |
| S2-600 | 15 | 12 | 50 | 280 | 5 | 600*550 | 300-800 |
| S2-800 | 22 | 16 | 50 | 300 | 5 | 800*600 | 500-1500 |
| S2-800 | 37 | 16 | 50 | 300 | 5 | 800*600 | 500-1500 |
| S2-1000 | 2*30 | 20 | 50 | 350 | 5 | 1000*700 | 1000-2000 |
| S2-1200 | 2*30 | 24 | 50 | 400 | 5 | 1200*800 | 1500-2500 |
| S2-1600 | 2*37 | 22 | 70 | 450 | 5 | 1600*900 | 2000-3000 |
Stplas Machinery has many years experience for plastic shredder making, plastic waste recycling machine making, We have advanced equipment to produce these main parts and have a good cooperation team.
Payment Method:
- TT 30-40% deposit, the balance of TT paied before shipment.
- 100% Irrevocable letter of credit. Or 30%TT, 70% LC
- Western Union.
If you want to know more information about plastic shredder machine,plastic waste washing recycling machine, plastic pipe making machine,plastic extruder, plastic mixing machine etc.welcome to contact with us.
