PE Drainage Plastic Sheet Extrusion Machine For Draining Water 1000mm 2000mm
PE drainage sheet making machine for draining water 1000mm 2000mm SJ90 extruder
HDPE waterproof and drainage board is a kind of high durability waterproof and drainage material that will not affact from the external influence generally, This environmental protection material won't damage to underground water sources, ecological environment, human health and the environment.
Basic parameter:
Processed Polymers: PE Virgin or recycled material
Thickness range: 0.8-1.5mm
Sheet width:1200-3000mm ( wider upon request )
special design for high output and energy saving
Usage:
The product produced by this machine Is specially used for producing PE high strength carbon waterproof structure plate; the plate is widely used for project of highway and railway, project of bridge and tunnel and project of underground.
Advantage:
1. Winder with big torque motor, and it’s speed and tension force adjustable
2. Automatic metering device can pre-set the length of product
3. Select different plastic to produce the compound sheet with different colors according to different products.
4. Advanced hydraulic pressure, high speed net changing fittings without stopping the machine
Main technical parameters
| Type | RE-1400 | RE-2200 | RE-2500 |
| Main motor | SJ-90 | SJ-120 | SJ-150 |
| Screw diameter(mm) | 90 | 120 | 150 |
| L/D ratio | 25:1/30:1 | 25:1/30:1 | 25:1/30:1 |
| Motor power(kw) | 55 | 90 | 132 |
| Control method | Frequency covertion | ||
| Move method | Whole move | ||
| Width(mm) | 1000 | 1500 | 2000 |
| Quencher roller cooled medium | Water | ||
| Asphalt heating medium | Conduct heat oil | ||
| Total power(kw) | 82 | 156 | 228 |

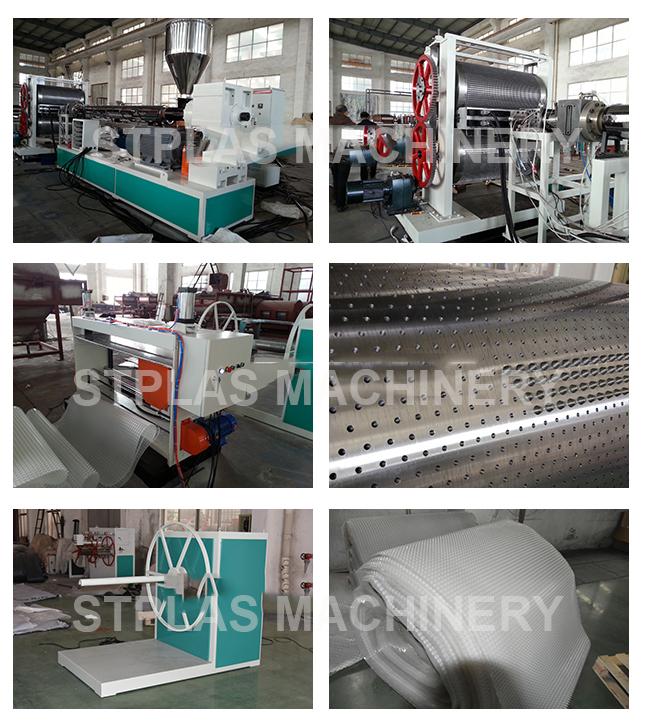

More Photos of drainage sheet production line:
If you want to know more informations ,Welcome to visit us.
