Crushed film bag material pelletizer machine, Trash can crushed material recycling granulation line
Crushed material pelletizer machine, Trash can crushed material recycling granulation line
Crushed material pelletizer machine recycle waste, discarded, scrap, and defective plastic into pellets and reuse.
The hard flakes mainly contain crushed TV case, Broken pill bottle, crushed trash can , Car bumper etc.

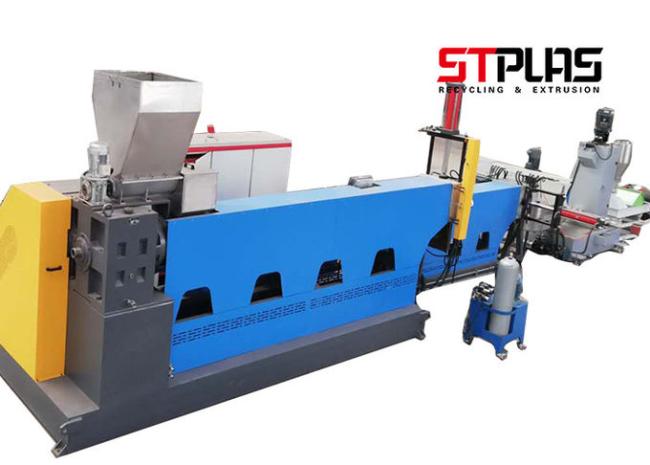

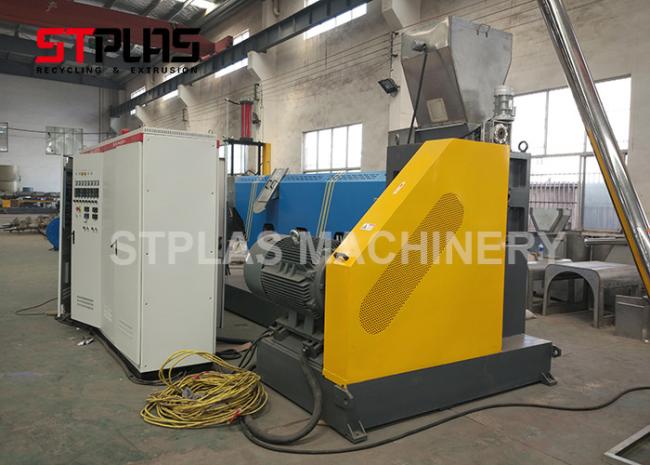

Main Film extruder pelletizing line:
This set of is mainly composed of belt conveyor, compactor, extruder, die, water ring pelletizer, dehydrator, vibrating screen, conveying device and storage bin.
The water jet granulator is suitable for most polymers except those with low melt viscosity or viscosity. This kind of equipment is also called water ring pelletizer.
The molten polymer is extruded from the hot die and cut into pellets by a rotating knife rotating on the surface of the die. The characteristic of this sweet grain system is its specially designed water jet cutting chamber. The water flows spirally around the cause until it flows out of the sweet grain chamber. After the pellets are cut, they are thrown into the water stream for preliminary quenching. The pellet water slurry is discharged into the pellet slurry tank to be further cooled, and then sent to a centrifugal dryer to remove water.
Crushed material pelletizer machine Application:
- Plastic raw material: plastic milk bottles, car bumper, trash can, Barrels of gasoline, plastic toy etc.
- This material should be crushed firstly, then go into extruder.
- The cutter type is according material to water-cooled ring grinding, striping cutting, Underwater pelletizing.

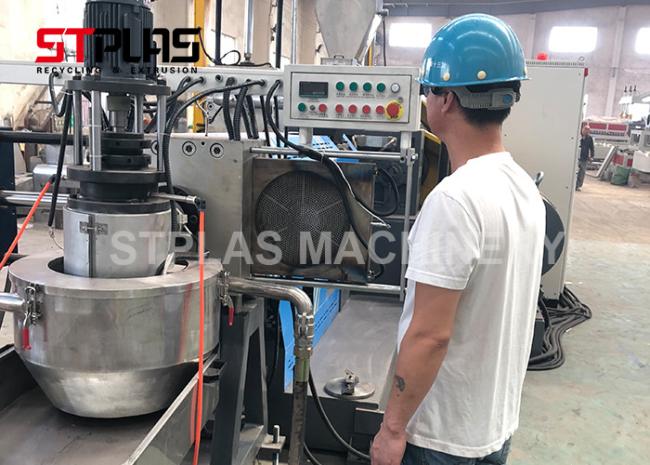

Water ring cutting pelletizer machine,

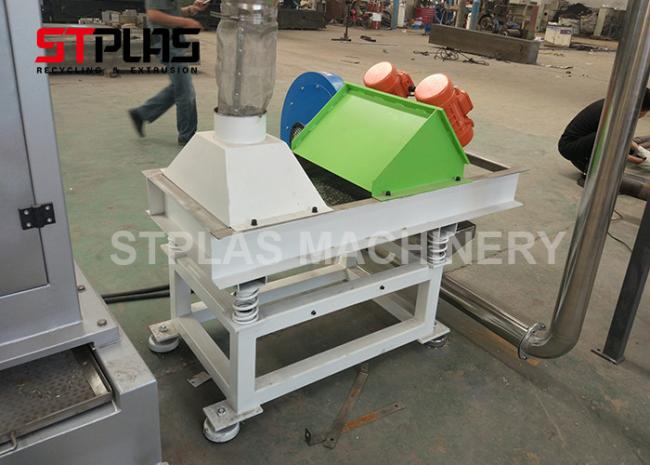

Vibrating screen Technical data:
Ø Vibration motor: 0.12KW×2 units
Ø Number of screen layers: 2 layers
The Whole Production line technical parameter for 300kg/h:
| Capacity | 300kg/h |
| Motor Power | 284.04kw |
| Water usage | 6 m3/h |
| Air Usage | 20L/min 0.6Mpa |
| Power | AC 380V 50HZ/ 3 phase |
SUZHOU STPLAS MACHINERY also can supply other plastic machine:

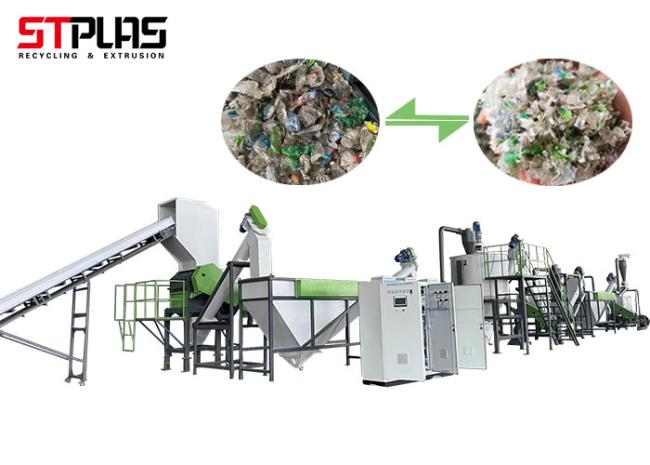

1. PET BOTTLE CRUSHING WASHING PRODUCTION LINE
2. PP PE FILM CRUSHING WASHING PRODUCTION LINE
3. PP PE BOTTLE/DRUMS/CONTAINERS CRUSHING WASHING PRODUCTION LINE
4. PP PE COMPACTOR FILM PELLETIZING LINE
5. PET PELLETIZING LINE
6. PLASTIC SHREDDER MACHINE
7. PLASTIC CRUSHER MACHINE ETC.
