Low Noise Plastic Washing Recycling Machine For PP Non Woven Bags / Fiber Bags
PP non-woven bags fiber bags cleaning drying production line
For the big capacity, the shredder can be option when the first step of crush. But our biggest crusher can be meet 500kg/h .
The complete PP non-woven bags washing line also can washed PE film , Agricultural film, shopping bags, other films and bags material .
The whole line include selecting , crusher, washer, dryer for one system, it is the necessary machines for recycle processing, after cleaning ,it can be go to extruder make granules directly.
Features:
- Low noise, new design.
- Skd-II blade in crusher. Durable
- Screw feeder and floating washer, dewatering ,which part with water are all made of stainless steel 304.
- Dewatering part using squeezing machine ,high capacity ,high effective, no need hot air dryer, and reduce the cost of electric. After squeezing machine ,the films/bags can be go to extruder directly.
Main technical parameter:
| Model | ST-300 | ST-500 | ST-1000 |
| Capacity (kg/h) | 300 | 500 | 1000 |
| Installation power (KW) | 100 | 150 | 250 |
| Space(m2) | 100 | 150 | 250 |
| persons | 2-3 | 3-5 | 5-6 |
| Compressed air (m2/min) | 0.5 | 0.7 | 1 |
| Water consumption(m3/hr)) | 3 | 4-6 | 6-8 |

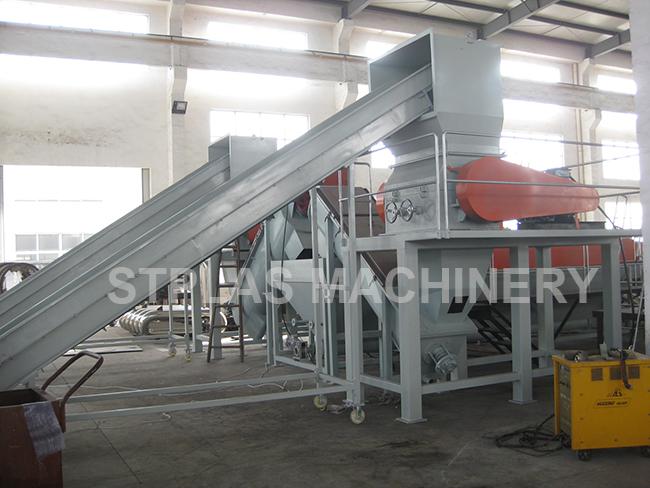

More Photos of complete PP bags cleaning line:
Final Products:
Optional machine:
Film squeezing machine with cutter:
