High Automation Hot Die Face Pelletizer / Water Ring Pelletizer System For Plastic Film
Hot die face pelletizing machine for plastic film with Centrifugal dehydrator
hot die face pelletizer also called water ring pelletizer, according the raw material, you can choose normal feeder, compactor feeder or nip roll feeder.
The entire production line has a high automation, which is a fully automatic assembly line.One people add waste plastics in front, The other one connect the pellets to the finished product, and realize a direct transformation from waste plastics to finished pellets.
The final pellets look beautiful, the shape is a cylinder, and the size and thickness can be adjustable.

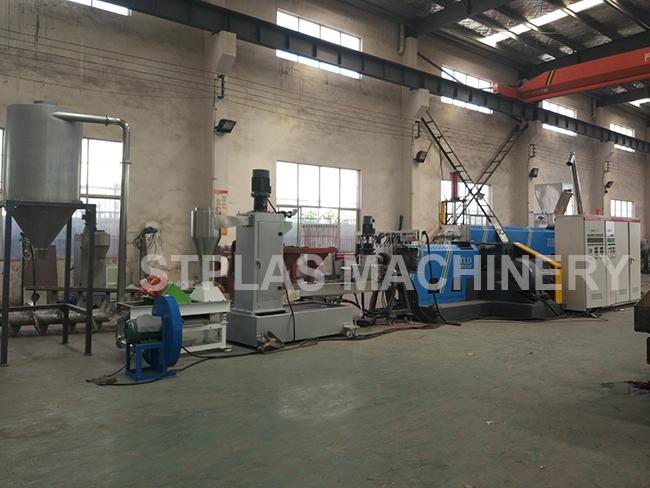

More Photos of hot die pelletizing machine:
Main technical Parameter:
| Model |
Screw diameter (mm) |
L/D |
sub- screw diameter (mm) |
L/D |
Capacity (kg/h) |
Total power (kw) |
| SJ100 | 100 | 30-34 | 100 | 10:1 | 200-250 | 90kw,22kw |
| SJ120 | 120 | 30-34 | 120 | 10:1 | 300-350 | 110kw,30kw |
| SJ130 | 130 | 30-34 | 130 | 10:1 | 350-400 | 132kw,37kw |
| SJ150 | 150 | 30-34 | 150 | 10:1 | 400-500 | 160kw,45kw |
