304SS Plastic Film Washing Machine / Bags Recycle Washing Machine

Price Negotiable

Price: Contact Us

MOQ: 1 set

Delivery Time: 30-80days

Brand: STPLAS

Product Description

PP washing line company film squeezing machine

This complete line suit for PP PE material, PP shopping bags, PP woven bags, PE films, packing bags etc.

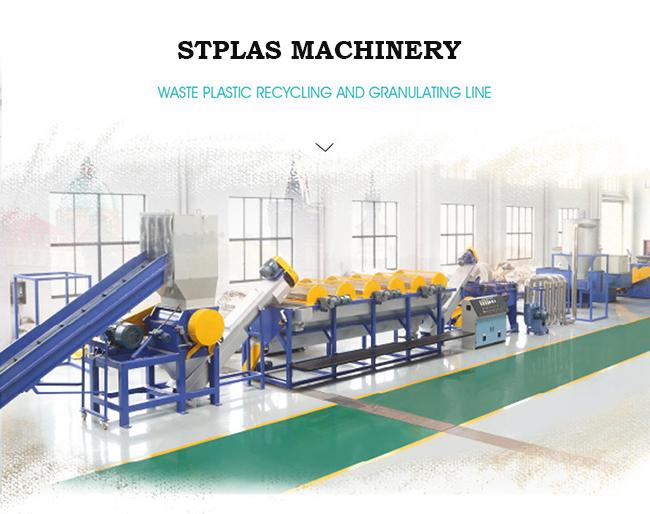

PP washing line consist of plastic select device, crusher, washer, separate, dryer and packing. This is the whole complete line on our project.

PP washing Line Properties and advantages:

The complete line made by stainless steel, a whole set of production line with the advanced technique. All line reaches CE certification (both mechanic and electric).
PP, PE film washing line adjusts Germany technology and mix with our own design, they are very popular now.
The whole line is used to wash and recycle waste materials, like PP, PE, LDPE,LLDPE film, etc.
The final clean material can be granulated immediately.
Capacity is from 300kg/h to 1000kg/h.
It including: belt conveyer- crusher (with water) - scrubbing machine (friction washer) -film floating tank - screw feeder - centrifugal dewatering machine - fan drying system - storage hopper.
We can design whole line according to your request.

PP washing line Main Features

Easy operation: it has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine.
Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
High pressure double crank to control the die opening and closing.
Running in a high automatization and intellectualization, no pollution.
Apply a linker to connect with the air conveyor, which can directly inline with other submachine.

Main Technical Parameter

Model	Capacity (kgs/hr)	Motor (power)	Square meter(m2)	People	Compressed air(m2/min)	Water consumption(m3/hr)
ST300	300	100KW	100	5	0.5	3
ST500	500	150KW	150	6	0.7	4.5
ST1000	1000	250KW	200	8	1	6

More details of PP washing line:

Waste PP PE washing line:
Raw material & formulation	Post-consumer bottles
Capacity range	300kg/hour
	500kg/hour
	1000kg/hour
Description of final product	Moisture: below 1%
	Particle size: 50mm
	Impurities: 100 ppm
	PVC label content: 100 ppm
Production standard	CE, ISO9001

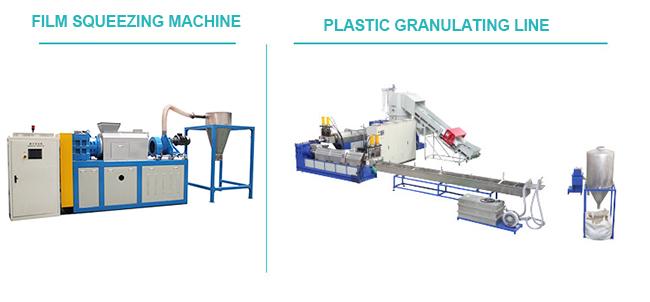

We also can supply film squeezing machine & film pelletizing line:

Film squeezing machine:

Due to many customer told the final film Water content can not go to extruder directly , for this problem ,we research and designed film squeezing cutter one unit.
If you do the final products for yourself , after film squeezing machine can meet it ,the pellets can go to injection machine or other extruder to make your products. But if you want to sell good sale-pellets, you should buy pelletizing machine to make pellets.
