High Speed Plastic Washing Recycling Machine For PP PE Film 100 KW
High Speed Plastic Washing Recycling Machine For PP PE Film 100 KW

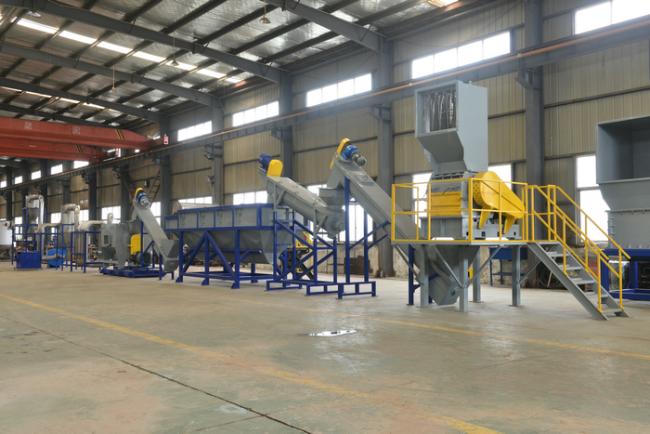

PP, PE waste film crushing washing recovery production line consists of:
conveyor belt, crusher, friction cleaning machine, sedimentation rinse tank, spiral elevator, dewatering machine, duct drying system, silo, control panel and other components.
PP, PE waste film crushing and washing recovery production line is developed through the introduction, digestion and absorption of advanced concepts and technologies of the same industry in the world, combined with the needs of today's development and the secondary application of waste plastics. It can meet the environmental protection requirements for the recycling of waste plastics at home and abroad.
The main processed materials are PE/PP plastics, PE/PP plastic waste hybrids, waste PP woven bags, plastic bags, household waste plastics, and waste agricultural film. The entire production line can easily clean waste plastic products from the start of operations to the finished product. Dirty agricultural films, waste packaging materials or hard plastics are processed step by step here.
The simple and effective design of the entire production line makes the assembly line popular at home and abroad. The production process in strict accordance with the requirements of CE certification makes the quality and safety of the machine more reliable. Cleaning line output: 100-1000kg/h.
Plastic Washing Recycling Machine Main Technical Parameter
| Model | Capacity (kgs/hr) | Motor (power) | Square meter(m2) | People | Compressed air(m2/min) | Water consumption(m3/hr) |
| ST300 | 300 | 100KW | 100 | 5 | 0.5 | 3 |
| ST500 | 500 | 150KW | 150 | 6 | 0.7 | 4.5 |
| ST1000 | 1000 | 250KW | 200 | 8 | 1 | 6 |
Plastic Washing Recycling Machine Usage:
- Package films
- Agriculture films
- PE/PP Large film cover earth
- PE/PP plastic waste rubbish
- PP woven bags
- Plastic shopping bags
- Household waste plastic
According different raw material and requirement, we have different design , for crusher and dewatering system option.
Product Description of PE film washing line;
- Plastic recycling washing line is applicable to recycling of waste PE PP films. The production process is totally automatic. You just put in waste and dirty films, then clean flakes come out. The high quality flakes can be used in extrusion and pelletizing.
- This line include crusher, floating tank, steam washer, high speed friction washer, dewatering machine, drying system, and storage hopper, etc.
- Final flakes: PVC less than 100ppm, caps&labels less than 100ppm, metal less than 50ppm, moisture less than 3%.
We can supply the capacity from 300-2000kg/h.
After washing ,the material goes into film squeezing machine ,or pelletizing extruder. We both can supply these two machines.
If you want to know more information ,contact with us freely.
