Service Equipment Digital Signage Digital Signage and Displays

Perimeter Football Basketball P10 100m Outdoor Full Color LED Display

Price Negotiable
Price: negotiable
MOQ: 1sqm
Delivery Time: 10-20 days
Brand: Vegoo
Product Description

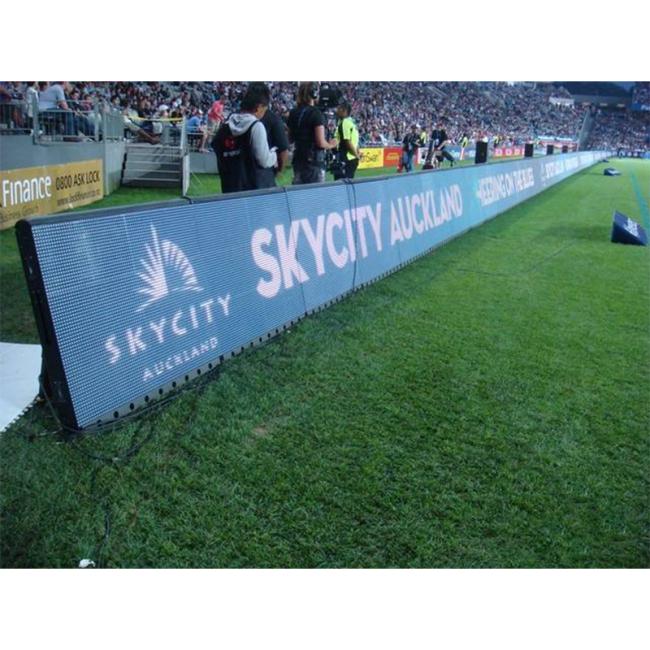

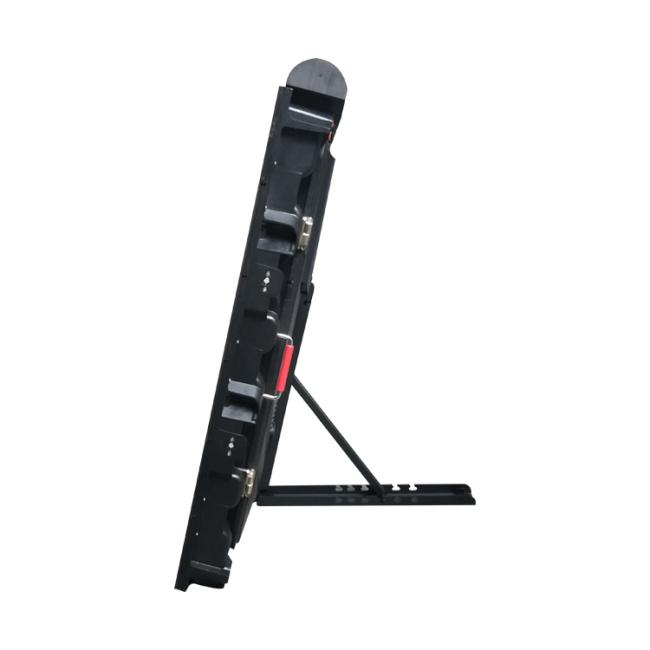

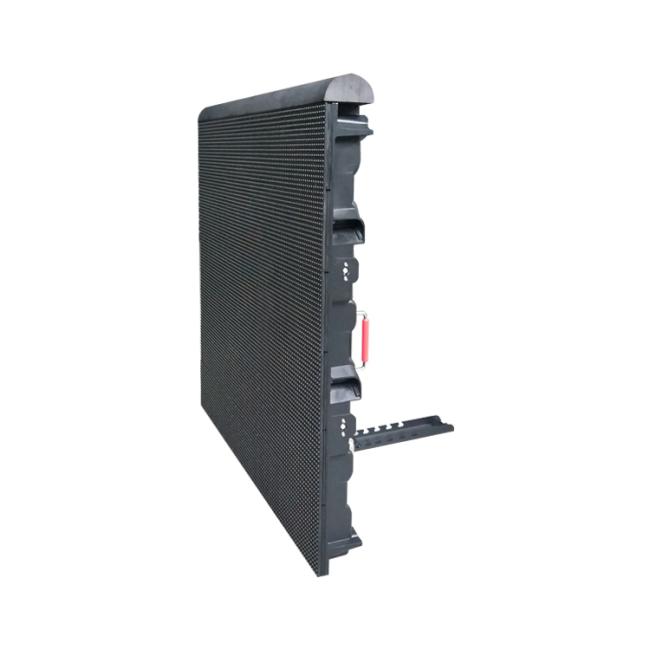

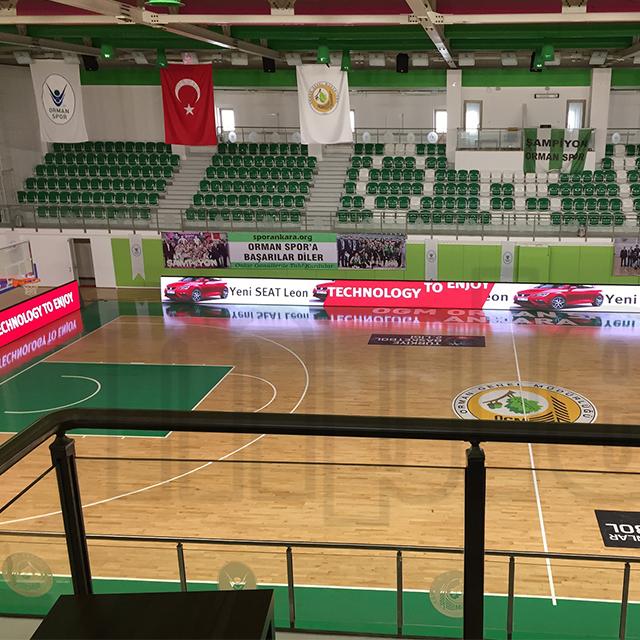

P10 Perimeter Outdoor Waterproof Football Basketball Stadium Led Display Screen

Product Description

1.High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2.Constant current chip driving reduces the power consumption and prompts the stability, the Simple modular design is low cost and easy to maintain.
3.Can undertake single point, single lamp maintenance,the cost is low.
4.Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
5.Due to its locating holes and 4 in bracket design,it can be used on indoor big screen.
6.Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor close-range viewing.

7.Temperature: −20℃~+50℃.Humidity:≤90%.MTBF:≥10,000 hours.
Lifespan:≥50,000 hours.Defective Dot Rate: <0.0002.



Different options:

Standard (1) : Led Lamp + Chip + IC Board + Power supply + Control System + Processor
Medium (2) : Standard (1) + Installation Solution
High class (3) : Medium (2) + Installation Solution + Site construction.



Specification:



P10 Football Stadium Perimeter Led Banner Display Screen
Item
Parameter
Pixel Pitch
10mm(H*V)
Color
10,000 dots/m2
LED Shape
SMD3535
LED Configuration
1R1G1B
Module Size
320x160mm
Module Resolution
32 (W)×16 (H)pixels
Driving Mode
1/4Scan,constant current
Cabinet Material
Steel
Brightness
≥7200cd/m2
Contrast
2000:1
View Angle
140°(horz.), 140° (vert.)
Protection Level
720 W/sq.m
Average Power Consumption
320 W/sq.m
Viewing distance
10-100m
Gray Scale
12-16bits for red,green,blue
Colors
16.7 M
Input voltage (AC)
110V ~ 240V
Frame Frequency
50Hz-75Hz
Refresh Rate
≥1200Hz
Brightness Adjustment
0-100%
Operating Temperature
( -30℃~+50℃ )
Operating Humidity
10-90% RH
Life Span
100,000Hours
MTBF
≥10,000Hours
Protection Rating
IP65 waterproof
Optional Connectivity
3/4 G, Wifi control,TCP/IP(LAN)
Control Method
Asynchronous or Synchronous
Controller Type
LED Editor software



FAQ

1. How long could I receive the inquiry reply?
A: You will get a reply within 24 hours.


2. How long do you provide warranty time?
A: Different product offer different time frame warranty, but all product here we offer 2 years at least warranty

3. How long will it take to deliver goods?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.

4. What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts. Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time!


5. How can you ensure the led display product quality?
A: Our led display screen quality is our core competence, for 12 years, what we rely on. We have each standard process to make quality products.
