P10 Cabinet 960mm*960mm Outdoor Full Color LED Display
Good Quality P10 Outdoor Led Display,Advertising Led Display Screen Price,960mm*960mm cabinet
Thinner and lighter
| P10 Outdoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 10mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| 3 | Density | 10,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| 6 | Module Resolution | 32×16 | ||||||||||
| 7 | Cabinet Resolution | 96×96 | ||||||||||
| 8 | Driving Method | 1/ 4 Scan | ||||||||||
| 9 | Driving IC | FM6124 | ||||||||||
| 10 | Brightness | 5500cd/㎡ | ||||||||||
| 11 | Contrast | 6000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜520W | ||||||||||
| 14 | Average power: ＜250W | |||||||||||
| 15 | Cabinet Weight | 28kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V/5V60Hz | ||||||||||
| 36 | Protection |
waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) |
||||||||||

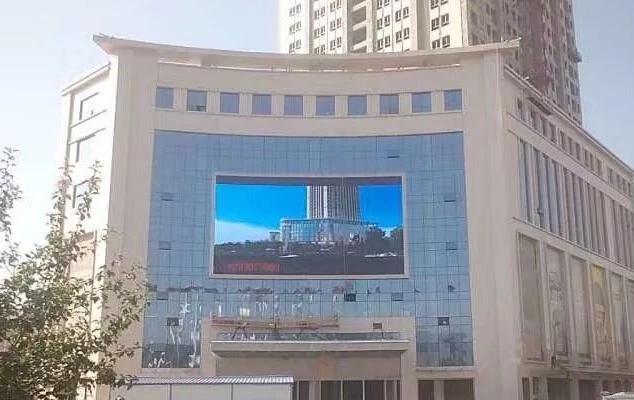

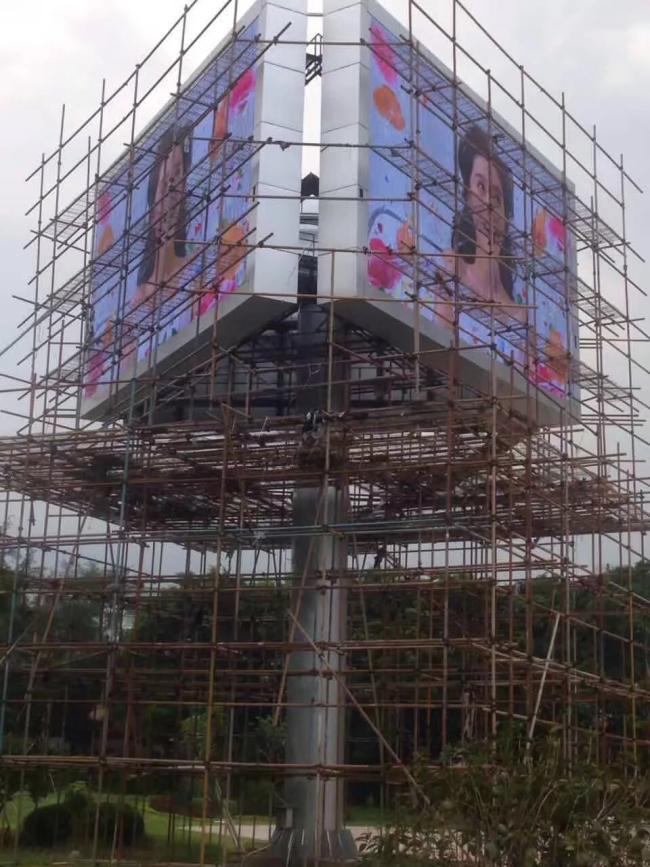

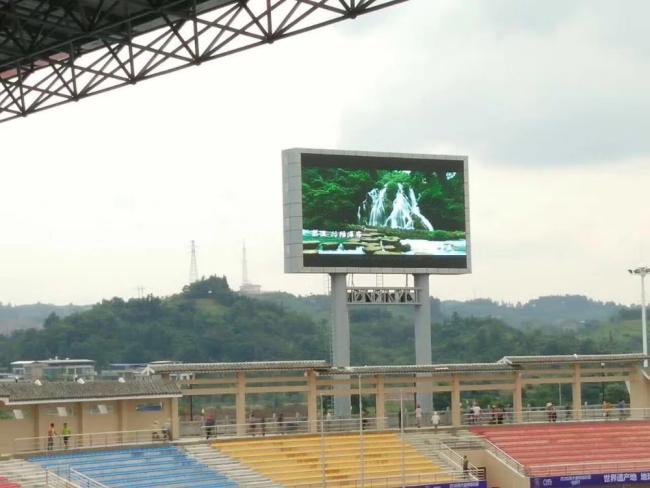

Applications
Package
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remend our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materils only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consulation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consulation by E-mail, call, MSN or other ways for free.
