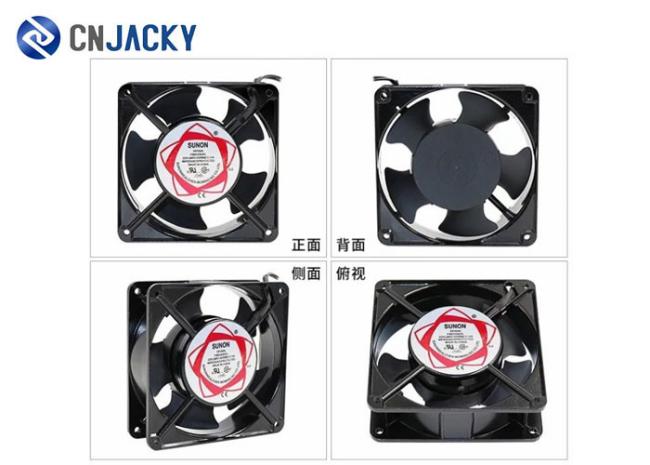

12038 DP200A Axial Flow Cooling Fan 120*120*38mm Card Making Auxiliary Equipment
High Speed 120*120*38mm Axial Flow Cooling Fan for Card Machine
Note:The fan is not used in the same place. The required screws are different. The screws are not matched, including the screws that are not compatible with the matching net.
Application:
| Voltage | AC220V |
| Size | 120*120*38mm |
| Installation size | 104.8*104.8mm |
| Packing | no separate box, ordinary cardboard box, no screws |
| Frame | black painted aluminum alloy die-casting anti-corrosion and moisture-proof structure |
| Wind blade | injection molding, PBT + 30% glass line + VO grade flame retardant |
| Bearing | low noise imported oil bearing |
| Insulation | Enameled wire is made of Class B insulation, high temperature resistance 120 °C |
| Insulation resistance | 500 megaohms or more |
| Life | working environment temperature 40 ° C 30000 (hours) |
Fan rotation: counterclockwise from the direction of the blade;
Ambient temperature (°C): -20°C～75°C
Life: Working environment temperature 40 ° C B: (oil bearing) 30000 (hours)
Long service life and long working hours for 24 hours.
Fan frame: injection molding, pure aluminum manufacturing
Wind blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant
