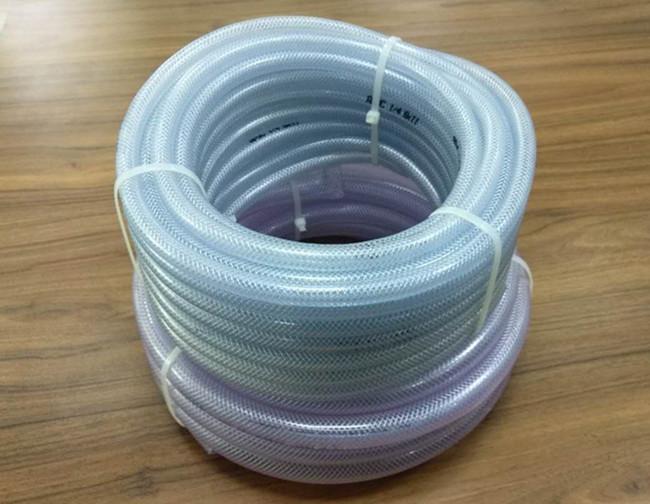

Multipurpose PVC Braided Hose Transparent 1 Inch Water Hose 2mm - 8mm Thickness
1 inch 25mm transparent multi-purpose soft pvc braided water hose / pipe / tube
| Specification | 1/8 inch - 3inch |
| Color | Clear, Blue, Orange, Yellow, Red etc. |
| Quality Grade | Food Grade, No Toxic Grade, No Smell Grade |
| length | 20m/30m/50m/100m or customized |
| Characteristic | flexible, transparent, corrosion resistant |
| Reinforced Material |
high strength fiber
|
Characteristics:
1. Colorful, light, flexible, elastic, portable and with excellent adaptability;
2. pvc braided hose is made from non-toxic ingredients;
3. Has good weather and abrasion resistant;
4. Has good burst strength, withstands nozzle shut-off.
5. High quality, low price, higher cost performance.
6. Suitable for usual pressure environment.
7. Passed the ROHS, PAHS test.
Applications:
1. Being widely used for irrigation and washing in the parks, factories and families;
2. Gardening, car spray washing, floor cleaning, other daily life uses;
3. Be perfect to use with hose reel and accessories.
4. used for transporting of various gases, high pressure water and other liquids.
5. Widely used for industrial compressed air transporting, industrial cleaning, high pressure spraying etc.
Package:
Plastic film surrounded inside, woven bag packaged, or standard export carton packaged, or other ways as customers required.
Specification:
| Inner Diameter | Wall Thickness | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/8 | 4 | 0.078 | 2.0 | 0.051 | 12 | 175 | 100 | 300 |
| 13/64 | 5 | 0.098 | 2.5 | 0.076 | 12 | 175 | 100 | 300 |
| 1/4 | 6 | 0.098 | 2.5 | 0.087 | 12 | 175 | 100 | 300 |
| 5/16 | 8 | 0.098 | 2.5 | 0.105 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.098 | 2.5 | 0.130 | 10 | 145 | 100 | 300 |
| 1/2 | 12 | 0.118 | 3 | 0.185 | 9 | 130 | 100 | 300 |
| 5/8 | 16 | 0.118 | 3 | 0.230 | 8 | 116 | 100 | 300 |
| 3/4 | 19 | 0.118 | 3 | 0.270 | 6 | 87 | 100 | 300 |
| 7/8 | 22 | 0.118 | 3 | 0.305 | 5 | 73 | 100 | 300 |
| 1 | 25 | 0.118 | 3 | 0.340 | 4 | 60 | 100 | 300 |
| 1-1/4 | 32 | 0.157 | 4 | 0.590 | 4 | 60 | 100 | 300 |
| 1-1/2 | 38 | 0.157 | 4 | 0.690 | 4 | 60 | 50 | 150 |
| 1-3/4 | 45 | 0.217 | 5.5 | 1.140 | 4 | 60 | 50 | 150 |
| 2 | 50 | 0.236 | 6 | 1.380 | 4 | 60 | 50 | 150 |
| 2-1/2 | 64 | 0.276 | 7 | 2.030 | 4 | 60 | 50 | 150 |
| 3 | 76 | 0.630 | 8 | 2.750 | 4 | 60 | 50 | 150 |
