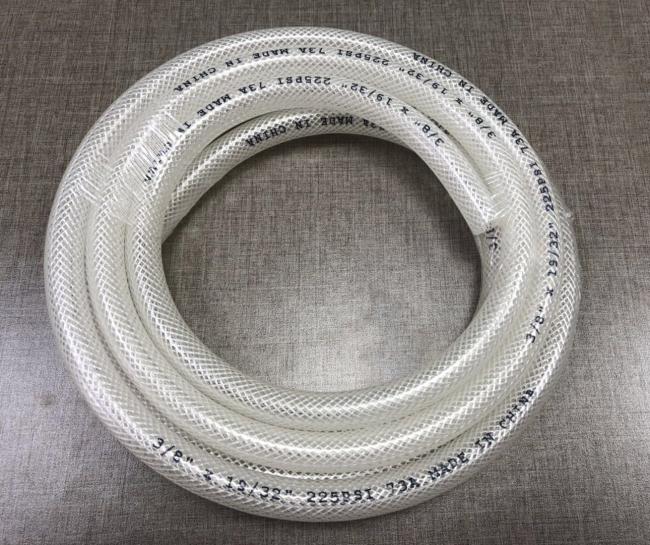

Meksular Braided Tubing PVC Clear Hose Reinforced With Fiber
Meksular Braided Tubing PVC Clear Hose Reinforced With Fiber
Fiber reinforced hose are also known as mesh tubes, braided tubes because of the inner layer of fiber yarns, PVC fiber reinforced hose mainly used in high-end food, makeup, medicine and other industries required.
Features: smooth appearance, small bending radius
Performance: high strength, high modulus, high elasticity, tear resistance, solvent resistance, oil resistance, weather resistance, and the performance of rubber and plastic. His outer diameter, bending radius and weight are both 1/2-1/3 of the other same use hose, which is very convenient for process design and manual installation.
Uses: High-pressure, low-pressure hoses are mainly used in high-pressure hoses, brake oil pipes on machine tools, automobiles, construction machinery, motorcycles, and pneumatic instrument lines in industrial automation such as petroleum, chemical, pharmaceutical, and smelting.
Specification:
| Inner Diameter | Outer Diameter | Weight | W.P.(at 23℃) | Std Length | ||||
| inch | mm | inch | mm | kg/m | bar | psi | m | ft |
| 1/5 | 5 | 0.354 | 9 | 0.12 | 10 | 145 | 100 | 300 |
| 1/4 | 6 | 0.393 | 10 | 0.15 | 10 | 145 | 100 | 300 |
| 5/16 | 8 | 0.472 | 12 | 0.20 | 10 | 145 | 100 | 300 |
| 3/8 | 10 | 0.591 | 15 | 0.31 | 8 | 120 | 100 | 300 |
| 1/2 | 12 | 0.708 | 18 | 0.36 | 8 | 120 | 100 | 300 |
| 5/8 | 16 | 0.866 | 22 | 0.54 | 8 | 120 | 50 | 150 |
| 3/4 | 19 | 0.984 | 25 | 0.78 | 6 | 90 | 50 | 150 |
| 1 | 25 | 1.259 | 32 | 1.05 | 6 | 90 | 50 | 150 |
| 1-1/4 | 32 | 1.575 | 40 | 1.30 | 4 | 60 | 50 | 150 |
| 1-1/2 | 38 | 1.851 | 47 | 1.40 | 4 | 60 | 50 | 150 |
| 1-3/4 | 45 | 2.165 | 55 | 1.60 | 4 | 60 | 50 | 150 |
| 2 | 50 | 2.441 | 62 | 2.00 | 3 | 45 | 30 | 90 |
| 2-1/2 | 64 | 3.071 | 78 | 2.80 | 3 | 45 | 30 | 90 |
| 3 | 75 | 3.543 | 90 | 3.50 | 3 | 45 | 30 | 90 |
