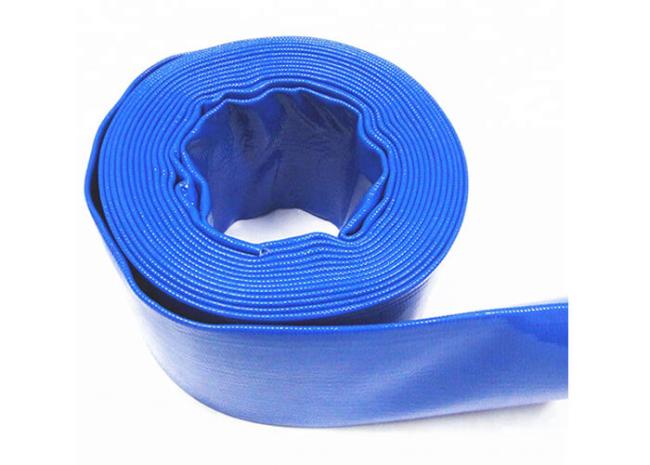

2 Inch PVC Layflat Hose High Pressure Water Soft Hose For Agriculture Irrigation System
2 Inch PVC Layflat Hose High Pressure Water Soft Hose For Agriculture Irrigation System
PVC layflat hose is a PVC discharge lay-flat hose that resists kinking and twisting. This hose is designed as a standard duty hose for water discharge in industrial and construction applications, and is economical and rolls up flat for easy storage.
Tube: Non-toxic clear flexible PVC.
Reinforcement: High tensile synthetic fiber braiding.
Cover: Non-toxic clear flexible PVC.
Characteristics:
Light weight,Good flexibility.
Corrosion resistant,anti-aging.
Easy handle & storage.
Various colors available.
Assemblies and/or cut lengths available.
Non-toxic,Non-smell
Burst pressure 3 times working pressure.
Temperature range: -5℃(23℉)to + 65°C (+ 149°F)
PVC Lay Flat Hose is a high-quality hose designed for water discharge applications. It offers a range of features that make it an ideal choice for agriculture, irrigation, drainage, and construction applications. Here are the top five features of PVClayFlatHose:
1. Durable: PVC Lay Flat Hose is made of high-quality PVC materials that offer excellent strength and durability. It can withstand high pressure and heavy-duty usage without getting damaged.
2. Lightweight: PVC Lay Flat Hose is lightweight, making it easy to handle and transport. It can be rolled up easily, making it convenient to store and handle.
3. Flexible: PVC Lay Flat Hose is highly flexible, allowing it to bend and flex easily without kinking or breaking. This makes it ideal for use in tight spaces or areas where space is limited.
4. Chemical Resistant: PVC Lay Flat Hose is resistant to a wide range of chemicals, making it ideal for use in areas where it may come into contact with chemicals or other harmful substances.
5. Cost-effective: PVC Lay Flat Hose is a cost-effective solution for water discharge applications. It provides high-quality performance at an affordable price, making it a popular choice for commercial and residential applications.
Specification:
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | weight | coil | |||
| inch | mm | mm | bar | psi | bar | psi | g/m | m |
| 3/4 | 20 | 22.4 | 4 | 60 | 16 | 240 | 100 | 100 |
| 1 | 25 | 27.4 | 4 | 60 | 16 | 240 | 140 | 100 |
| 1-1/4 | 32 | 34.4 | 4 | 60 | 16 | 240 | 160 | 100 |
| 1-1/2 | 38 | 40.2 | 4 | 60 | 16 | 240 | 180 | 100 |
| 2 | 51 | 53 | 4 | 60 | 12 | 180 | 220 | 100 |
| 2-1/2 | 64 | 66.2 | 4 | 60 | 12 | 180 | 300 | 100 |
| 3 | 76 | 78.2 | 4 | 60 | 12 | 180 | 360 | 100 |
| 4 | 102 | 104.5 | 4 | 60 | 12 | 180 | 550 | 100 |
| 5 | 127 | 129.7 | 4 | 60 | 12 | 180 | 750 | 100 |
| 6 | 153 | 155.7 | 3 | 45 | 9 | 135 | 900 | 100 |
| 8 | 203 | 207 | 3 | 45 | 9 | 135 | 1600 | 100 |
| 10 | 255 | 259.8 | 3 | 45 | 9 | 135 | 2600 | 100 |
| 12 | 305 | 309.7 | 2 | 30 | 6 | 90 | 3000 | 100 |
| 14 | 358 | 364 | 2 | 30 | 6 | 90 | 5000 | 50 |
| 16 | 408 | 414 | 2 | 30 | 6 | 90 | 6000 | 50 |
