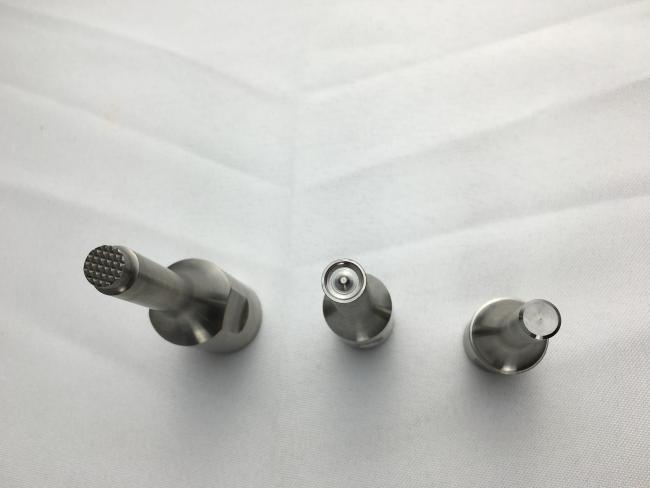

28KHZ High Power ultrasonic handheld Welder Rivet Welding With Multiple Horn

Ultrasonic hand welder offers a low cost solution for parts where automation is not viable or production volumes are low. Application areas include spot-welding, staking of components, access to difficult weld areas and second operations/re-work.

The ultrasonic hand press offers a cost effective alternative to a standard pneumatic bench press. It is ideal for low volume production, offering an advantage over a hand held welder with its rigidly fixed welding head. The weld depth can be set giving consistent, repeatable results.

Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together

All ultrasonic welding systems are composed of the same basic elements:

A machine to put the 2 parts to be assembled under pressure
A nest or anvil where the parts are placed and allowing the high frequency vibration to be directed to the interfaces
An ultrasonic stack composed of a converter or piezoelectric transducer, an optional booster and a sonotrode . All three elements of the stack are specifically tuned to resonate at the same exact ultrasonic frequency (Typically 20, 30, 35 or 40 kHz)
Converter: Converts the electrical signal into a mechanical vibration
Booster: Modifies the amplitude of the vibration. It is also used in standard systems to clamp the stack in the press.
Sonotrode: Applies the mechanical vibration to the parts to be welded.
An electronic ultrasonic generator delivering a high power AC signal with frequency matching the resonance frequency of the stack.
A controller controlling the movement of the press and the delivery of the ultrasonic energy.

Advantages:

• East take,east operate,easy install.
• Welds by Time, Energy or Peak Power with settable +/- window limits!
• Auto-tuning
• Overload Protection to protect equipment
• Power and Status Display
• Short Circuit Protection

Parameter:

Our hand-held thermoplastic welding tools meet two needs: welding of hard-to-reach areas and tamper-proof sealing of packaging.

In practically no time your production teams will be producing clean welds with our ultrasonic gun and pencil.

These tools are designed for ease of use, adaptability and flexibility to ensure clean and strong welds.
We have the solution to all your assembly needs.

We also have metal housing welding pencil, for welding machine assembly.

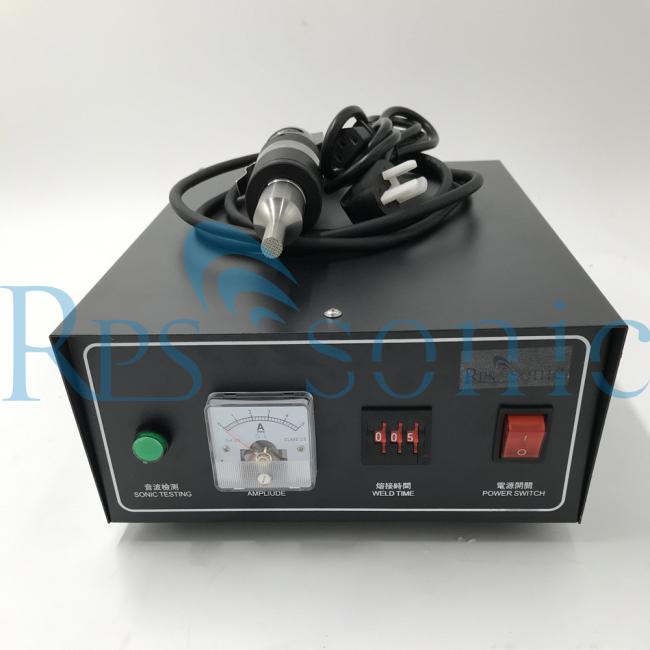

The feature of the hand-held welding machine

Applicable to a single point welding,screw implants,riveting,cutting cloth,as the processing tool.

Scope of application: widely used in printing supplies,toys,daily necessities,communication,electricity, jewelry,watches,aviation,and other industries.The market prospect is broad. car door wide range of applications particularly.
