Fabric melt-blown and PP roll seam ultrasonic welding / sewing machine

Dispersion

Ultrasonic welding with the Seamsonic is a economic and conventional sewing technology. No needle thread, no flash.

If assembling of laminates, clothing fabrics with high share of polymer and technical non woven is required and in particular to get, the use of the Seamsonic is the first choice.

Check video on YouTube https://youtu.be/4OUA1nB8ZW8

Characteristics

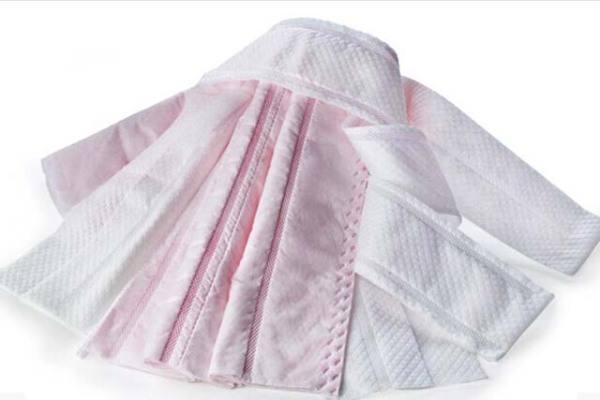

1.Seaming,trimming and embossing without glue, thread or other consumables
2.More faster and cost effective .
3.Eliminates fraying or unraveling of bonded edges and seams
4.Multifunctional and thousands of designs available

5.Welded edge can be Customized pattern and more beatutiful.
6.Requires minimum training and maintenance
7.Super strong ultrasonic power meets the needs of different fabric thickness

8.Labor cost and time savings

RPS-SONIC specializes in manufacturing ultrasonic seam welding solutions for rotational systems.

There are two types of rotating modules for these operations: with either a side or central sonotrode resonating at a 35 kHz frequency and power varying from 600W to 1200W.

These horns can be made out of aluminium, treated with a special surface strengthening procedure, or titanium.

Our seam welding solutions are employed in binding synthetic textiles such as PVC, polyester, polypropylene, coated, filtering and technical fabrics.

Parameter:

Item	Rotary horn	Flat horn
Frequency	35Khz	20Khz
Power	500W	1500W
Horn Photo
Horn material	Titanium alloy	Steel horn
Advantage	Titanium alloy, more stable Longer using life Welding flatter	economic welding by ultrasonic
Disadvantages	Expensive	material transfer to be flat

APPLICATION:

An ultrasonic sewing machine is versatile and easy to use in order to seam, cut, slit, trim, tack, emboss, or to cut and seal at the same time. The process used by every ultrasonic sewing machine is fast, simple and efficient. It can seal up to 80 meters per minute without the need for threads nor needles.

It is indeed a flexible technology. Due to the adaptability of its design, it is possible to mount the sewing machine on a workbench or to install it into semi or fully automated systems.



Using an ultrasonic sewing machine brings forth a series of advantages:

• Fast and cost-effective weaving;
• Resilient seams;
• No need for consumables such as tape, clips or glue;
• Fast welding speed, high strength
• Nice welding seam, good sealing.
• Low energy consumption and easy operations
• Constant results;
• No cooling times and reduced maintenance costs;
• No shooting time for the stapler tool;
• Edging in one operation
• No need for needles, thread, spools and any activities related to color matching, inventories, winding and trimming;
• Environmentally-friendly because it does not need any adhesives and solvents;
• Edges get sealed without leaving any stitch holes, thus preventing penetration from chemical agents, blood borne pathogens and other particles.

Advantage:

Instead of needles, thread, glues or other adhesives, ultrasonic sewing equipment uses a patented rotary system, coupled with high-frequency vibrations, to bond synthetic or blended materials containing up to 40 percent natural fibers.

Resembling a traditional sewing machine, the ultrasonic sewing machine channels the ultrasonic vibrations between a horn and rotating wheel, producing a localized heat buildup which causes the synthetic fibers to soften and fuse. This creates a strong molecular bond that’s impervious to moisture.
