Integrated 20khz 2000W Ultrasonic Plastic Welding Machine
Updated plastic welding technology
Description:
The Integrated Ultrasonic Plastic Welding Machine 20kHz, adopts high performance tamper-proof microprocessor, realizing the electronic control, welding manage all control parameters by microcomputer, frequency control system, intelligent discharge the inconvenience of manual FM, sonic overload automatic detection, when the real track best resonance point, vibration group keep in low temperature, welding head temperature increase while the frequency will change accordingly, the machine automatically adjustment make it running more stable and widely used for Automotive Industry.
Specification:
| Specification | RPS-W20 | Current indication | Load current |
| Output power | 2000W | Air source requirements | Dry pure filtered air,pressure(1-6bar) |
| Frequency | 20khZ | Welding head cooling system | Air cold |
| Input power | 220V±10%,AC(50/60Hz, Uniphase) |
Maximum welding area | Φ200mm |
| Welding head stroke | 100mm | Machine dimensions | 700*400*1200 |
| Vibration system | American line | Case size | 400*280*160 |
| Welding time setting | Range:0.01-9.99S | Net weight | 80kg |
1) The booster can be replaced and with wide range of applications.
- Ultra-efficient transducers, with stable output.
- 2)New American lines,square column structure, more optimized performance.
- 3)Newly developed digital anti-interference of time control loop, overcomes the problem that time control systems are susceptible to interference from electric and magnetic fields or other electronic factors in previous. It achieves time control more precisely and the maximum safety.
- 4)Advanced soft starting mode design, avoid damaging mold.
5) FM and automatic frequency compensation with wide resonance frequency range.
6) The base can be adjusted the horizontal or not,mold adjustment is simple and convenient.
7) Buffering settings of welding head,better realization of non-destructive appearance of precision welding.
8) Action method: pneumatic
Applications:
Automotive industry: Car light, automotive interior parts etc.
Toy industry: Such as toy gun, water gun, telephone and rag baby etc.
Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.
Packing industry: Disguise box, PVC packing box, toothpaste tube etc.

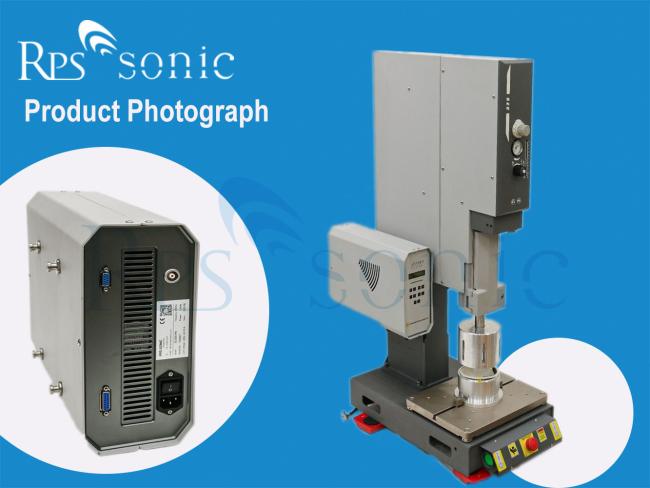

Product Detail:
Our promise:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; we reputation from customer.
