Economical Ultrasonic cutting knife for Confectioneries slicing

Rps-sonic offers special ultrasonic vibrating blades to cut all specific products for food industries as fixed weight portion cheeses all shapes, frozen cakes, frozen tarts in molds and complex products. Very attractive prices are done to offer an easy access to this new technology.

The ultrasonic cutting is then perfectly suited to slice :
Cheeses slicing: wheel, block, cheddar, feta, mozzarella, parsley block, cheese log, …
Cooked meat cutting: pate, ham, parsley ham, foie gras, quiche, pie, …
Pastries portioning: pie, dessert, cake, gingerbread, cookie, puff pastry, …
Confectioneries slicing: nougat, fruit paste, caramel, almond paste, fruit candy, cereal bars, chocolate, marshmallow, ganache, brittle, …
Servings and delis: wraps, sushis, sandwiches, …
Frozen foods: all kinds,
Fixed weight: for pre-packed, for important savings throught an accurate control of the sold product.

Welcome automation ultrasonics cutting systerm cooperate with us all over the world.

1. Ultrasonic processing is an efficient way to cut, slice, divert, align or transfer a variety of products.

It involves a vibrating blade producing a nearly frictionless surface with the influence of ultrasonic which does

not deform products and to which they do not stick. The vibrating frictionless blade cuts or slits products

cleanly such as nuts, raisins, dried fruit or chocolate morsels without displacement or plowing.

2.Ultrasonic vibration reduces friction resistance between the blade and mterial, and it makes the blade cut

smoothly without deformation.The cutting blade is made of titanium (or the material according to your requir

-ement ). It is completely inert and enduring material.

2.The use of ultrasonic cutting , incision aesthetic integrity, trimming neatly smooth, without Burr, to leave the

border areas, not black, not burned, not the hardware products to feel very good shear results

3.It can be used for cake, frozen food, cheese,ect.

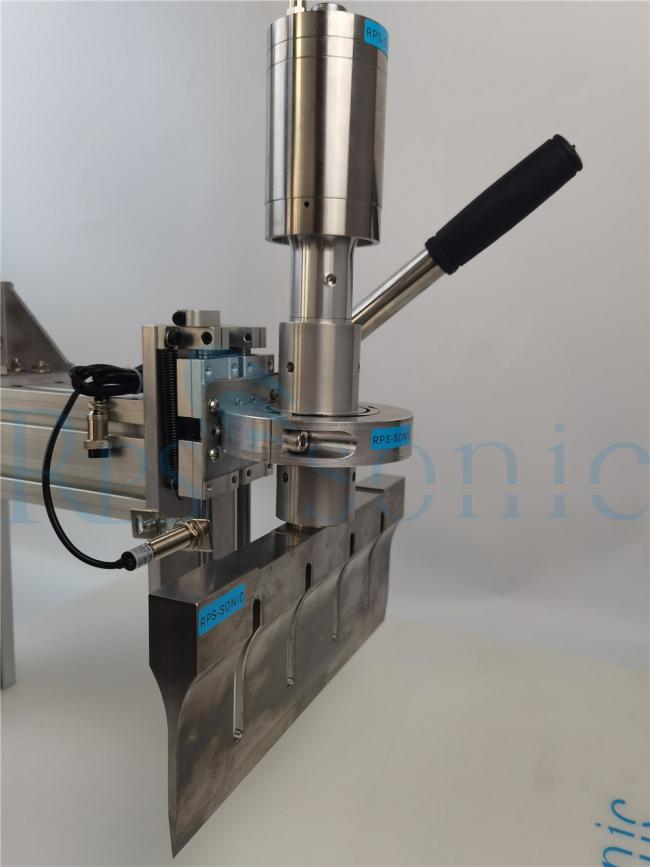

Composition of ultrasonic food cutting knife

Ultrasound power supply is also called generator, which converts 50/60 Hz AC voltage into high frequency electric energy. Depending on the application, the frequency can be 20KHz, 30KHz or 40KHz. At 20KHz, the tool head (blade) vibrates 20,000 times per second.

Transducer, a sealed electromechanical device, receives power from a power source and converts it into high-frequency mechanical vibration.

The horn is located between the transducer and the tool head (blade). The output amplitude of the transducer is amplified or reduced, and the appropriate amplitude is transmitted to the tool head (blade).

Tool heads, also known as blades in cutting equipment, are customized for specific applications.

Typical ultrasonic food cutting components include four major elements: a power supply, a converter, a booster and a cutting horn, as explained below.

The attraction of ultrasonic cutting

As always with our ultrasonic cutting, slicing, portioning machines, the benefits and options you will find are for instance:

• Almost no contact cutting / no sticking to the blade
• Perfect clean cut surface
• Compact equipment with a wide range of application
• Scalable machines as per your needs
• High accuracy 3D-reconstruction of each portion to be cut
• Fast data acquisition
• Wide products variety slicing without any tool changing
• No diameter, weight or thickness limits
• Wash down, and easy to maintain
• Max cutting width with 1 blade: 14″
• Possibility to increase the cutting width with blades side by side
• High speed slicing : 60 to 120 strokes / min per blade
• Working blade frequency: 20 kHz
• Maximum power allowed: 3 kW per blade
• Max cutting amplitude : 90 μ
• We work with modules and the slicing heads are optimized by our in-house research department, so we save time and money. This is why we end up with SHORT DELIVERY and a very COMPETITIVE PRICE!
