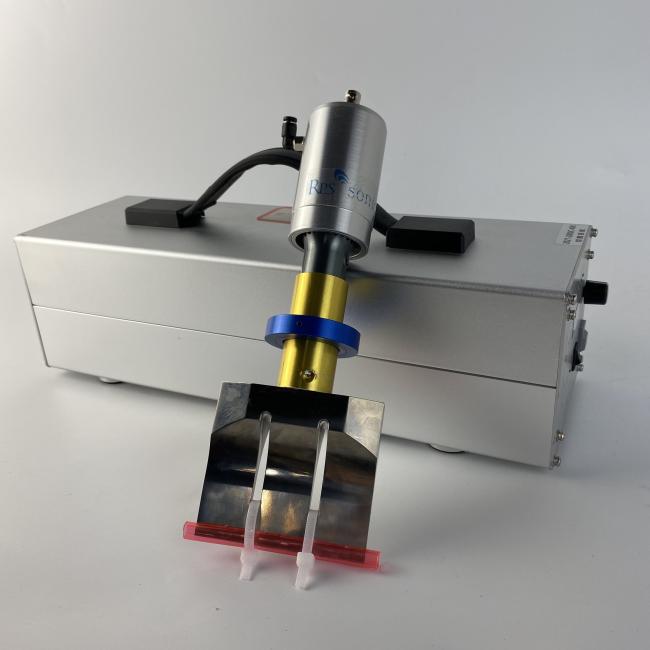

40kHz Handheld Ultrasonic Cutting Machine Rubber Sheet Cutter Equipment

PRODUCT DETAIL

Ultrasonic equipment is a kind of equipment that converts electrical energy into high-frequency mechanical vibration. It is mainly composed of an
ultrasonic transducer. an horn. a tool head and an ultrasonic aeneratorUltrasonic waves can produce cavitation. mechanical thermal and
chemical effects. and use these effects to achieve the purpose of use
The basic structure of the equipment: ultrasonic vibration parts +ultrasonic drive power

Principle of Ultrasonic Cutting
The principle of ultrasonic cutting knife is to convert 50/60Hz current into 20.30 or 40kHz electric eneray through ultrasonic generator. The
converted high-frequency electric eneray is again convertedinto mechanical vibration of the same frequency through the transducer and then the
mechanical vibration is transmitted to the cutting knife through a set of amplitude modulator devices that can change the amplitude. The ultrasonic
cuttina knife vibrates alona its lenath with an amplitude of 10-70um. repeatina 40.000 times (40 kHz) per second (the vibration of the blade is
microscopic. and it is generally difficult to see with the naked eve).The cutting knife then transfers the received vibration energy to the cuttino
surface of the workpiece to be cut. ln this area, the vibration energy is used to cut the rubber by activating the molecular energy of the rubber and
opening the molecular chain
