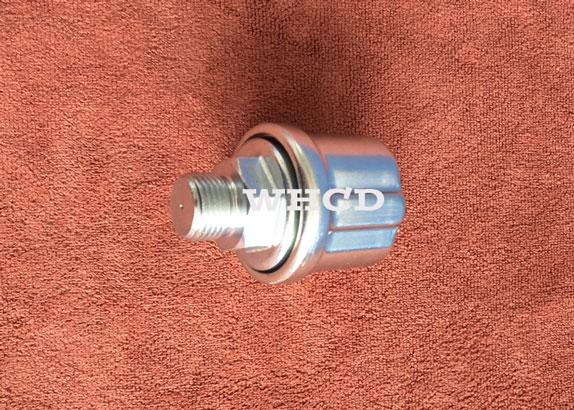

0 ~ 1.0 MPa White Zinc Plated Oil Pressure Sensor For Diesel Engine Trucks

Product Description

Oil Pressure Sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control projects.

Technical Data

Conducting power: < 5W
Operating temperature: -40 ~125℃
Measuring range:0~1.0 MPa/10 Bar/145 PSI
Alarm: 0.08 MPa/0.8 Bar/12 PSI
Output signal: 10~184Ω

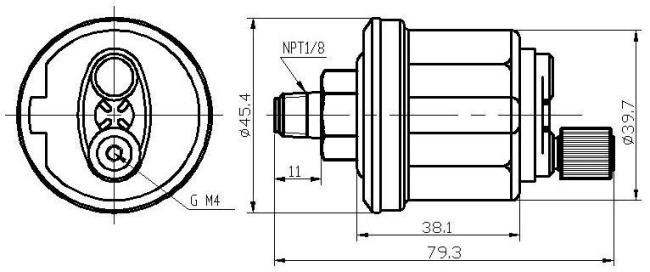

Thread fitting: NPT1/4, NPT1/8, M10x1, M12x1.5 or customized as requires.
Protection rank: IP66

Feature

Oil pressure sensor combines the advantages of excellent anti-vibration performance, long service life, simple assembly, stable quality, wide range of operating temperature etc.

Application

Automotive Engine
Automotive Brake System
Air Compressor
Agricultural Machinery Engine
Generator Engine
Diesel Engine
Hydraulic Control System

Instruction

This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.

Cautions

1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

2. the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

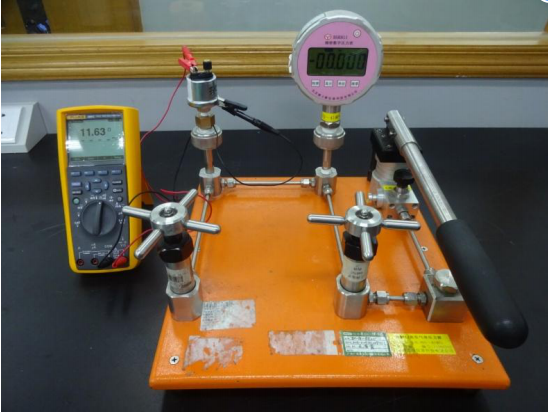

                                                 Basic Function Test

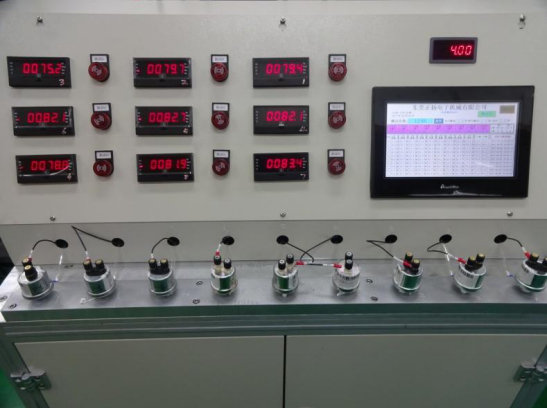

                                                               Life Test

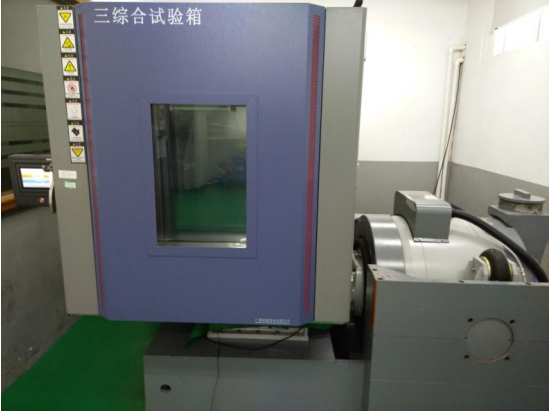

                                             Vibration Test

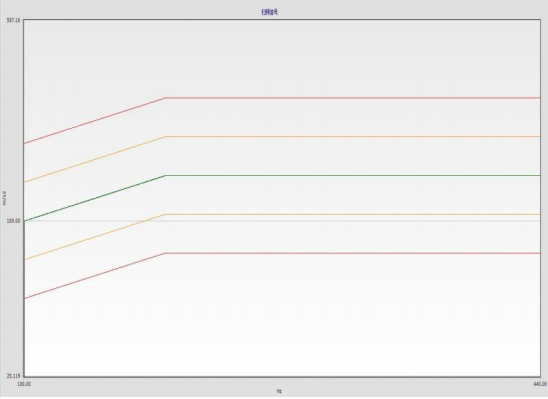

                                     Vibration Test Parameters

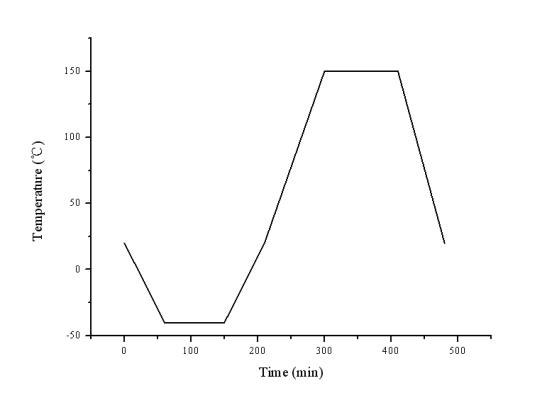

                                    Temperature Cycling Parameters


Delivery

Normally it’s 3-5 working days after payment cleared.

Payment

30% down-payment for production,the balance payment before shipment.

Packing

A: Product packed in foam box with bubble bag.
B: According to client’s requirement.

Shipment

DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.

Advantage

1.Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles.
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service

Q & A


Company Introduction

Wuhan Chidian Technology Co., Ltd is a professional manufacturer specializing in automotive sensor, located in the beautiful Wuhan Eco-Tech Development Zone. Mainly engaged in R&D, production and sale of automotive pressure sensors. We have first-class technical team, with strong R & D capability and rich experience in production management. In the production line, we have the most advanced and completed sets of equipment to ensure product quality and reliability. Our product quality has won user community's good reputation.

Looking forward to the future, the company is moving into the fast lane of development and will continue to adhere to the concept of creating quality products to serve global customers. Our mission is to be the most valuable and competitive automotive pressure sensor in the world.
