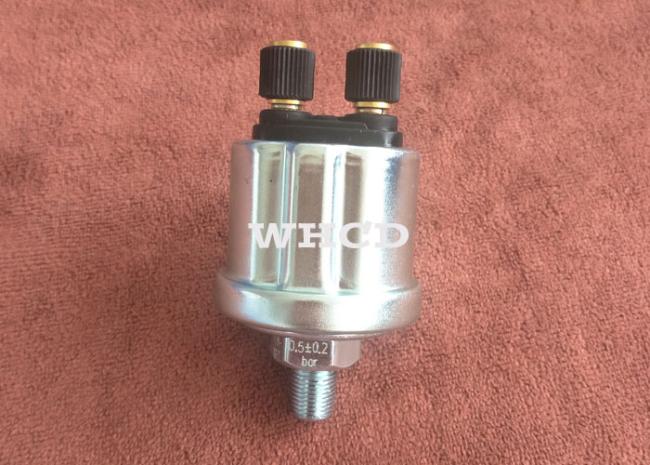

Truck Mechanical Oil Pressure Sensor , 0~150 PSI Low Oil Pressure Switch
0~150 PSI Mechanical Oil Pressure Sensor For Truck / Marine / Boat
Application
Oil Pressure Sensor is widely applied to many fields, such as the engine pipe of vehicle and ship, water processing project, inspection and control of industrial process, hydraulic and pneumatic control project etc.
Technical Data
| Operating voltage | 6~24V |
| Conducting power | < 5W |
| Operating temperature | -25 ~120℃ (120℃ MAX 1H) |
| Measuring range | 0~5 Bar or 0~10 Bar |
| Alarm | 0.8 Bar or 1.4 Bar |
| Output signal | 10~184Ω |
| Thread fitting | NPT1/4, NPT1/8, M10, M10x1, M16x1.5 or customized |
| Protection rank | IP66 |
Feature
|
Superior long term stability |
|
Temperature compensated over wide range |
|
Low power consumption |
|
Excellent repeat-ability / Hysteresis |
|
Special design for customer |
|
Many OEM options |
Instruction
This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.
Cautions
1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.
2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.
Delivery
Normally it’s 3-5 working days after payment cleared.
Payment
30% down-payment for production,the balance payment before shipment.
Packing
A: Product packed in foam box with bubble bag.
B: According to client’s requirement.
Shipment
DHL, Fedex, TNT, UPS, Airfreight and Ocean freight.
Advantage
1.Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles.
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Q & A
| Question | Answer |
| What’s your main products? | Oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor |
|
Where are you? |
Wuhan city, Hubei Province, China |
| Do you accept OEM? | Yes, OEM is welcomed |
| Are you manufacturer or trading company? | We are manufacturer with export license. |
| Do you provide sample? | Yes |
| Do you have any certificate? | Yes,we have ISO/TS16949, RoHS |
| What’s the MOQ? | There’s no limit for MOQ |
