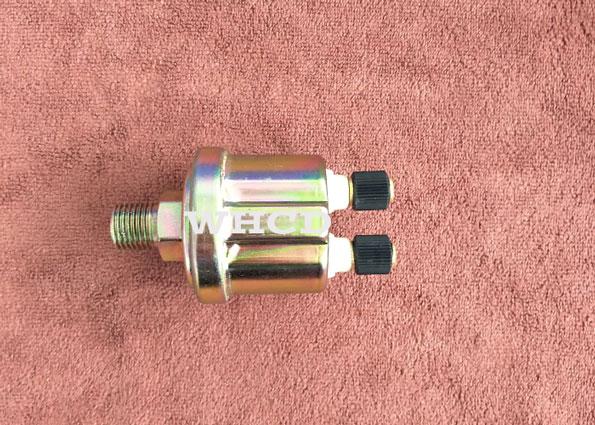

Oil Pressure Sending Unit / Universal Oil Pressure Sensor 0 ~ 10 Bar Thread M12 X 1.5
360-081-030-019C Engine Oil Pressure Sensor 0~10 Bar Thread M12x1.5
Technical Data
- Operating voltage:6~24V
- Conducting power: < 5W
- Operating temperature: -40 ~125℃
- Measuring range: 0~10 Bar
- Alarm: 1.5 Bar
- Output signal: 10~184Ω
- Thread fitting: NPT1/4,NPT1/8,M10,M10X1 or customized as requires
- Pressure medium: Oil-Fuel-Air
- Protection rank: IP66
Analog pressure and resistance parameter list
| Oil Pressure (Bar) | 0 | 2 | 4 | 6 | 8 | 10 |
| Resistance (Ω) |
10+3 -5 |
52±4 | 90±3 | 124±5 | 156±12 | 184±30 |
Feature
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeat-ability / Hysteresis
Special design for customer
Many OEM options
Function
It is installed in the down side of the throttle door spindle, it will change the open size of throttle door into electrical signal then pass it to the controlled computer ECU, and the computer ECU judge the engine work situation according to this signal, to control the oil injection according to different work situation for the requirement of mixture concentration.
Cautions
1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.
2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.
Our Service
- Our quotation is always valid for you if there is no world market unrest.
- Receiving your new inquiry, the details of products & the best price will be provided you asap.
- 7 days replacement and 12 months repair free of charge for quality problem.
- Port: Shanghai.
- Payment: T/T.
- OEM available
- Delivery time is 7-10 working days.
- All goods will be fully checked by our QC.
- Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
- Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
Q & A
| Question | Answer |
| What’s your main products? | oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor |
|
Where are you?
|
Wuhan city, Hubei Province, China |
| Do you accept OEM? | Yes, OEM is welcomed |
| Are you manufacturer or trading company? | We are manufacturer with export license. |
| Do you provide sample? | Yes |
| Do you have any certificate? | Yes,we have ISO/TS16949, RoHS |
| What’s the MOQ? | There’s no limit for MOQ |
