Electric Baggage Cart AC Motor Controller 2 Seats Airport Electric Cart For Park
Electric Baggage Cart Ac Motor Controller 2 Seats Airport Electric Cart For Park
Specification :
| HS CODE | 8709119000 | |
| Qty/20'GP (Assembled) | 1 units | |
| Qty/40'GP (Assembled) | 2 units | |
| Specifications | ||
| Performance: | ||
| Passenger capacity | 2 seats | |
| Max.Speed | 25 km/h | |
| Range(loaded) | 70km | |
| Climbing Ability(loaded) | 20% | |
| Braking Distance | ≤4.5m | |
| Min.Turning Radius | 5m | |
| Recharge time | 8~10h | |
| Dimensions | ||
| L×W×H | 4080*1560*2010mm | |
| Axle Distance | 1960mm | |
| Curb Weight950 | 950kg | |
| Max. loading | 900 kg | |
| Standard Configurations | ||
| Motor | 48V/5KW AC motor | |
| Controller | 48V controller | |
| Battery | Free-maintenance Batteries 6V/170Ah*8 pcs | |
| Body |
High strength composite body (PT+PBT alloy injection molding hood), with super anti-collision function.
|
|
| Seats |
PU car seat, in line with the principle of ergonomics, the driving position can be adjusted
|
|
| Rear view mirror | 2pcs | |
| Tire | Vacuum meridian tire 165/70R13, steel rim with rim cover. | |
| Chassis |
High strength steel structure frame longitudinal beam chassis, electrophoretic + spray powder anti-rust treatment. |
|
| Steering | Gear rack steering + electric steering assist system. | |
| Front Suspension | Front McPherson independent suspension, spiral spring + cylinder hydraulic shock absorber. | |
| Rear suspension | Integrated rear axle, steel spring + cylinder hydraulic shock absorber. | |
| Brake system | The front disc hydraulic double circuit brake + handbrake parking, with vacuum assisted brake system. | |
| Charger | Intelligent high-frequency on-board charger, input voltage AC220V output DC48V/25A. | |
| Dashboard |
Injection molding dashboard, with combination switch, electric lock switch, emergency power off switch, multi-function LCD display (including voltage, electricity, speed mileage and other instrument indicators and entertainment playback system), equipped with USB/Type-C interface, storage box, water cup seat. |
|
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | |

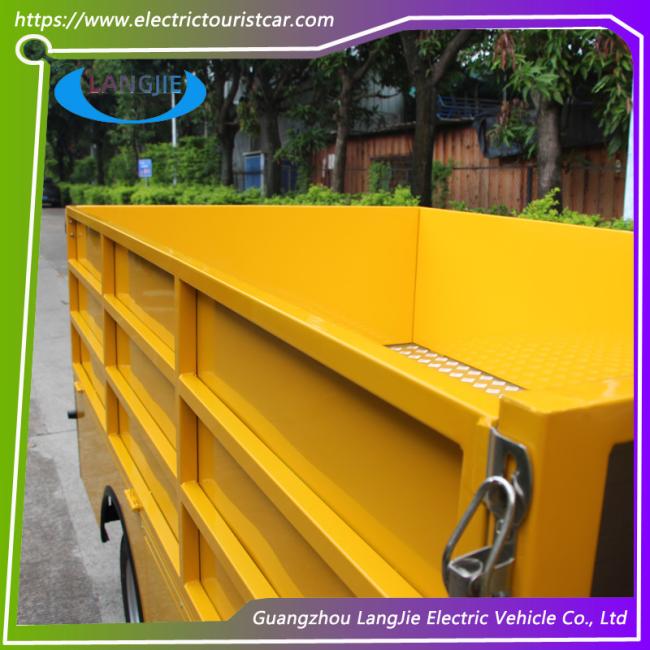

PHOTO:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
Q1. What's your warranty period?
A:All Langjie golf carts sold by us come with a quality guarantee. We offer a 1 - year warranty on the main parts of our electric vehicles from the date of purchase.
Q2. What's the production lead time?
A:Normally, it takes 30 working days.
Q3. What are your payment terms?
A: T/T: 30% deposit, and the balance to be paid before shipment.
Q4. Can we also purchase the parts?
A:Yes. If you need maintenance services, you can buy parts from us. We are experts in after - sales support.
Q5. How do you provide after - sales service once a customer buys the cart from us?
A; Once you purchase a cart from us, I will provide you with a user manual. It will help you understand the cart, and I'll also guide you on how to troubleshoot and repair it.
