11 Persons Village Electric Shuttle Car 72V / 5KW AC Motor Range For 100km
11 Persons Village Electric sightseeing car /electric shuttle bus /mini bus 72V/7.5KW AC MOTOR
using park/ hotel /school/village
Model Y113B Electric Shuttle Bus 11 seats Specifications :
| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 unit |
| Qty/40'GP (Aassembled) | 2 units |
Performance:
| Passenger capacity | 11 seats |
| Max.Speed | 28km/h |
| Range(loaded) | 100km |
| Climbing Ability(loaded) | 18% |
| Braking Distance | ≤4.5m |
| Min.Turning Radius | 5.7m |
| Min.Clearance | 150mm |
| Recharge time | 8~10h |
Dimensions:
| L×W×H | 4615×1520×1970mm |
| F/R Tread | 1280/1270mm |
| Axle Distance | 2650mm |
| Curb Weight | 1230kg |
| Max. loading | 880kg |
Standard Configurations:
| Motor | 72V/5KW DC motor | ||
| Controller | Curtis 72V/400A controller | ||
| Battery | Maintenance-free battery 6V/170Ah*12pcs | ||
| Body & Roof | High impact fiber glass | ||
| Windshield | See-through Laminated glass | ||
| Seats | Sponge + artificial leather | ||
| Rear view mirror | 2pcs | ||
| Bumper | Front and rear Bumper | ||
| Tire | 155/80 R12 Radial tire (Auto tire) | ||
| Chassis | Welded tubular steel with rust-proof powder coated paint | ||
| Steering | Power-Assisted Steering | ||
| Front Suspension | The MacPherson Strut suspension system, coil spring+shock absorber | ||
| Rear suspension | Leaf spring+shock absorber non-independent suspension | ||
| Sound system | Radio and MP3 player; Speaker | ||
| Brake system | 4-wheel hydraulic drum brake system + handbrake | ||
| Charger | Automatic high efficiency pulse, Output:72V/25A, Input AC 220V/50HZ | ||
| Dashboard | Voltameter, speedometer, ammeter,odometer, turn signal indicator, headlight indicator, emergency switch, Headlight switch, turn signal switch, wiper switch, horn button | ||
| Color Option | White, Grey, Navy, Red, Khaki, Purple, Green etc. | ||

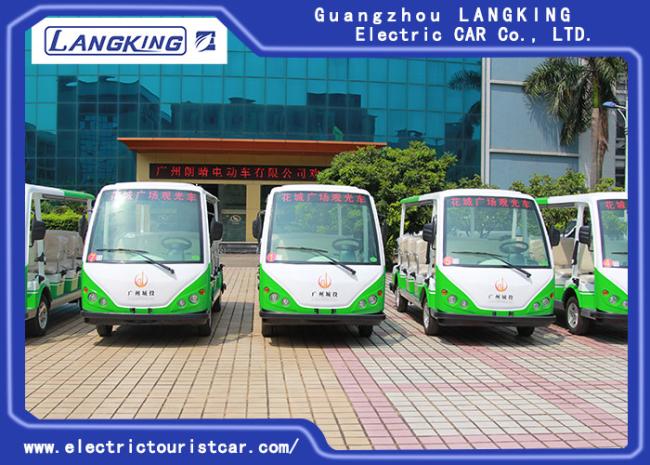

Product Showing:
Application:
* Golf Course,Hotel,Campus,Park,Airport,Tourist Resorts,Museum,Mountain Area,Wedding Place and so on.
FAQ:
1. What's your warranty time?
All Langking vehicles sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles when you get them.
2. What's the production time?
Normally for 30 working days.
3. What's your payment term?
T/T 30% deposit and the balance payment paid before shipment.
4.Can we also purchase the parts?
Yes,if you do maintainess service,you can also buy parts from us.We are the profeesional for the aftersales.
5. How do you provide after-sales once customer bought the vehicle from us?
Once you purchase the vehicle from us,then I will provide you manual to learn it and tell you how to fix it.
6.What is your MOQ?
You can order MOQ 1 unit .
7.Can we put the Logo we designed on the vehicle?
Yes, you can put your own Logo on the vehicle where you like.
