Service Equipment Commercial Laundry Equipment

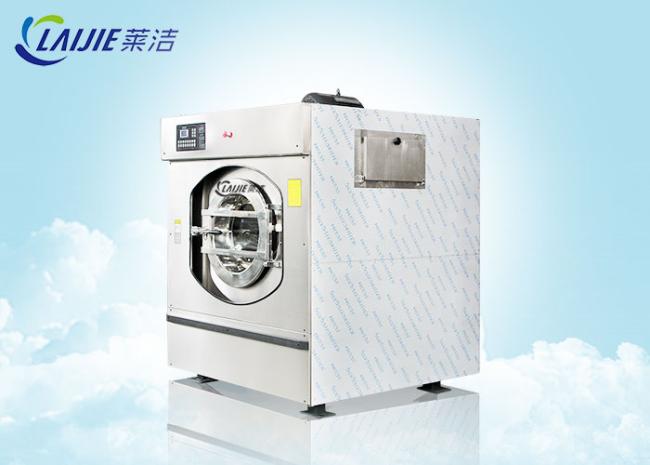

Automatic Heavy Duty Laundry Equipment / Commercial Front Load Washer With Large Drum

Price Negotiable
Price: USD 5776
MOQ: 1 piece
Delivery Time: 15 days after received payment
Brand: LAIJIE
Product Description



The Techinical of Heavy duty laundry equipment industrial washing machine price with large durm

1. Fully automatic, microcomputer-controller,freely programmable,30 possible programs , operator could set flexible.
2. Full suspension shock structure,low shake, low noise,combination of shock absorbance and springs for maximum absorption, need no excessive foundations.
3. Imported bearing, precise and durable.
4. High quality inverted system, easily realize washing and extracting frequency step less adjusting.
5, Built-out bearing lubrication, simple operation, convenient maintenance.
6, Safety door interlock system, reduce fatigue, misuse and the risk.

Our advantage of Heavy duty laundry equipment industrial washing machine price with large durm

1, Advanced computer programs
2, Stainless steel construction
3, Large diameter drum
4, Advanced inventor technology
5, Fast effective  extracting
6, Suspension system with spring and shock absorbers.
7, Safety door interlock system
8, Easy maintainance


Model XGQ-50
Max. Capacity(kg) 50
Washing Water Consumption(kg) 800
Power(kw) 5.5
Machine Weight(kg) 2200
Drum Dimensions(mm)
Drum Diameter(mm) 1080
Drum Depth(mm) 600
Drum Volume(L) 580
Overall Dimensions
Length(mm) 1625
Width(mm) 1720
Height(mm) 2030
Pipe
Hot Water Inlet(inch) 3/2''
Cold Water Inlet(inch) 3/2''
Draining Pipe(mm) Ø114
Drum Speed
Washing Speed(r/min) 34
Mid Dewatering Speed(r/min) 325
High Dewatering Speed(r/min) 660
G-force 300G
Electric Heating
Electric Heating Powder(kw) 20
Motor power (kw ) 5.5
Steam Heating
Steam pressure (Mpa) 0.4-0.6
Diameter of Steam Pipe(inch) 1''
Steam Consumption Rate(kg/kg) 0.7-0.9


Our brand service :

Before Sales:

  1. After received customer’s inquiry, according to the customer request and condition. Choose most suitable machine to customer in order to save customer’s cost .
  2. Offer full specification to customer help customer learn our technology .
  3. Help customer to choose suitable machine
  4. Offer relevant specification and video to customer
  5. Check shipment cost for customer

Medium Sales :

  1. Track every details step by step , Keep whole production processing for customer via email , picture , Video.
  2. Once received deposit ,will let customer know and arrange production immediately.
  3. Strictly control the machine’s quality in according with contract.
  4. Book shipment with agent , offer shipment document to help customer to clear custom.

After sales:
1>Offer Manual book to customer help customer how to operation machine
2>Offer installation supporting to help customer to finished installation as per schedule.
3>Communicate with customer timely to know the market feedback.
4> Help customers develop new products to develop new market.

Maintenance of Heavy duty laundry equipment industrial washing machine price with large durm :

1. Check the water outlet at the bottom of the bearing seat of the washer regularly to ensure that there is no water in the bearing seat and prolong the service life of the bearing.
2. Lubrication check (No. 3 lithium-based lubricant) is injected into the oil cup of the eluent once a month or about 30 times per wash.
3. Check the wiring and relay looseness and dust accumulation regularly in the electrical box.
4. Use hot water to wash clothes. The water temperature should not exceed 45 degrees Celsius in order to prevent damage to the washer barrel.
5. There are also certain requirements for the water pressure and voltage of the user scaled to the environment of the fully automatic eluent. In the use of washing machines, water pressure should not be too low, because too low water pressure, slow flow will affect the service life of water valves and motors. Users of high-rise residential buildings should try their best to avoid using elution dual-purpose machines during peak water use period.
Sixth, try not to put the automatic eluent in the humid space. If the environmental conditions are limited, we should also pay attention to relative maintenance measures and maintain good ventilation.
7. Check regularly whether the triangle belt of the eluent is loosened or not, and tighten the triangle belt regularly.
