Load Cell 693B Stainless Steel Alloy Steel double ended Beam weight force sensor 200KLB for weighbridge 3.0 ±0.003mV/V
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
Negotiable
Brand:
Innovation
Product Description

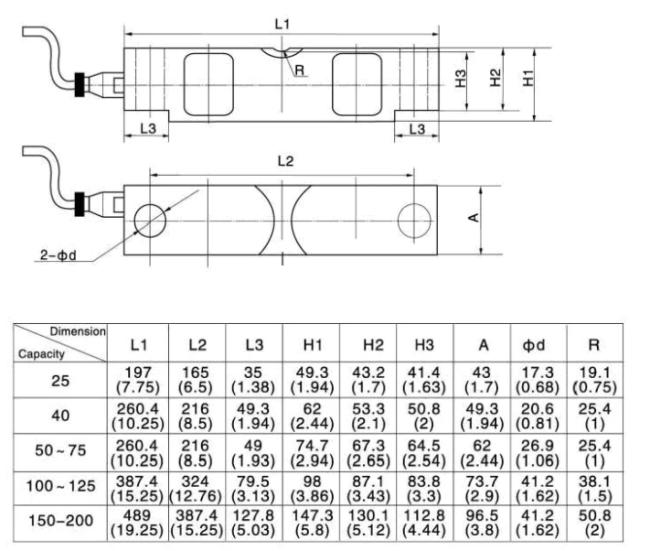

693B 25~200KLB Double Shear Beam Load Cell
Alloy steel/Stainless steel 693B 25~200KLB Double Shear Beam Load Cell For Truck Scale
Mainly apply with weighbridge, suitable for truck scale,comply with OIML C3 standard,interchangeable with Vishay HBM,Mettler Toledo Load cell.
Good quality and long life with competitive price! Hot selling and could be customized.
If you have any weighing problem especially in packing industry, contact us, we are confident to provide you a suitable and economic Solution!
| Rated capacity (Emax) | Klb | 25/40/50/60/75/100/125/150/200 |
| Accuracy class | C3 | |
| Sensitivity | mV/V | 3.0 ±0.003 |
| Zero balance | mV/V | 0.03 |
| Creep over 30min | % | 0.02 |
| Temperature effect on zero | %/ | 0.004 |
| Temperature effect on output | %/ | 0.0014 |
| Hysteresis | % | 0.017 |
| Linearity deviation | % | 0.017 |
| Repeatability | % | 0.017 |
| Nominal temperature range | -10 to +40 | |
| Service temperature range | -30 to +65 | |
| Limit load | % of R.C. | 120 |
| Break load | % of R.C. | 150 |
| Nominal excitation | V | 5~12 |
| Max. excitation | V | 18 |
| Input impedance | 700 ±7 | |
| Output impedance | 703± 4 | |
| Insulation resistance | M | >5000 |
| Cable length | M | 9 |
| Cable type | 4 conductors, Braid Shielded, Black PVC Jacket | |
| Color code | +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht |
