Load Cell 612B 10-50ton alloy steel Double Ended Beam weight force sensor will upper cover for truck scale weighing weighbridge 2.0± 0.002mV/V

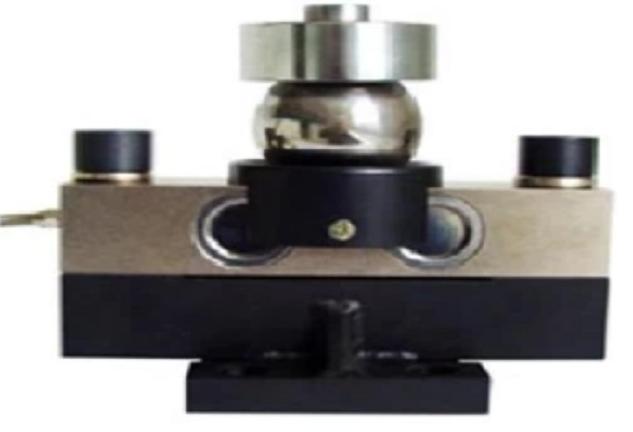

612B 10t To 50t Double Ended Load Cell
612B 10t To 50t Double Ended Load Cell in alloy steel or stainless steel For Truck Scale
612B load cell mainly be used for truck scale, railway scale, blending scale and special scale. In the past tens of years, we established very good relationship with wide range of suppliers and customers in weighing products especially in packing industry and also investigated in our own factories of weighing, step by step, we get our own special advantages in this market: more accuracy and more economic weighing solution for you!
If you have any weighing problem especially in packing industry, contact us, we are confident to provide you a suitable and economic Solution!
| Rated capacity (Emax) | t | 10/20/25/30/40SE/40/50 |
| Accuracy class | C3 | |
| Sensitivity | mV/V | 2.0± 0.002 |
| Zero balance | mV/V | 0.015 |
| Creep over 30min | % | 0.02 |
| Temperature effect on zero | %/ | 0.004 |
| Temperature effect on output | %/ | 0.0014 |
| Hysteresis | % | 0.017 |
| Linearity deviation | % | 0.017 |
| Repeatability | % | 0.017 |
| Nominal temperature range | -10 to +40 | |
| Service temperature range | -30 to +70 | |
| Limit load | % of R.C. | 120 |
| Break load | % of R.C. | 150 |
| Nominal excitation | V | 5 |
| Max. excitation | V | 18 |
| Input impedance | 700 ±7 | |
| Output impedance | 703± 4 | |
| Insulation resistance | M | >5000 |
| Cable length | M | 6 |
| Cable type | 4 conductors, Braid Shielded, Black PVC Jacket | |
| Color code | +Exc-Red, +Sig-Grn, -Exc-Blk, -Sig- Wht |
Install application:
