Chemistry Storage Tank Stainless Steel Fermentation Tanks Heating Tanks
High Quality Stainless Steel Reaction Fermentation Mixing Tanks Storage Tank

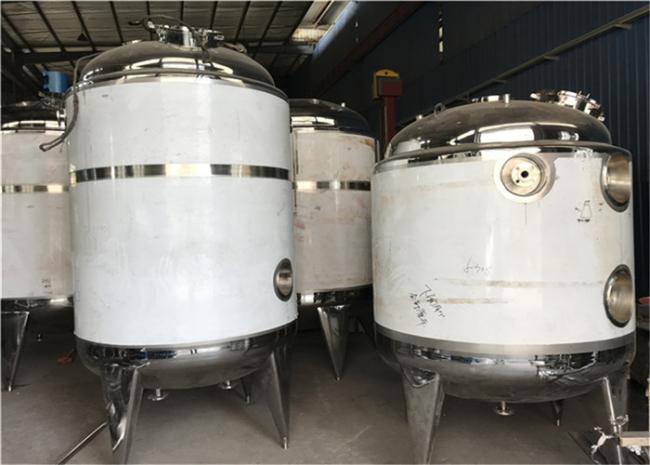

1. Storage Tank Picture and Instruction :
1. Joints adopt international general ISO package chuck, inner container adopts imported stainless steel SUS 304 or SUS316, internal surface polishing.
2. Technical Parameter :
| Work Volume | Dimension of tank | Total height | Insulated layer | Diameter of inlet&outlet | Motor Power | Blending speed |
| (L) | (mmxmm) | (mm) | (mm) | (mm) | (kw) | (r/min) |
| 500 | 840*1000 | 2300 | 60 | 38 | 0.75 |
Rotating 20,35,50, 100,500 Stepless speed reducer or inverter reducer available |
| 600 | 920*1000 | 2400 | 60 | 38 | 0.75 | |
| 700 | 990*1000 | 2400 | 60 | 38 | 0.75 | |
| 800 | 950*1220 | 2550 | 60 | 38 | 0.75 | |
| 900 | 1010*1220 | 2700 | 60 | 38 | 0.75 | |
| 1000 | 1060*1220 | 2700 | 60 | 51 | 1.1 | |
| 2000 | 1340*1500 | 2750 | 60 | 51 | 2.2 | |
| 3000 | 1410*2000 | 3500 | 60 | 51 | 4 | |
| 5000 | 1910*2000 | 3850 | 60 | 51 | 5.5 | |
| 10000 | 2300*2440 | 4500 | 60 | 51 | 7.5 | |
| 15000 | 2530*3000 | 5200 | 60 | 51 | 7.5 | |
| 20000 | 2640*3660 | 5800 | 60 | 51 |
Chemical Industry Stainless Steel Single Double Wall Jackete Wall Buffer Tank Fermentation Tank
2. Technical Parameter :
| Model Specification |
KQ- 100 |
KQ- 200 |
KQ- 500 |
KQ- 1000 |
KQ- 1500 |
KQ- 2000 |
KQ- 2500 |
KQ- 3000 |
KQ- 4000 |
KQ- 5000 |
| Volume(L) | 100 | 200 | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Nominal diameter(mm) | 500 | 600 | 800 | 1000 | 1200 | 1200 | 1400 | 1400 | 1500 | 1600 |
| Nominal pressure in kettle(Mpa) | 0.5 | |||||||||
| Nominal pressure of jacket(Mpa) | 0.250.6 | |||||||||
| Motor power(kw) | 1.1 | 1.5 | 2.2 | 4.0 | 4.0 | 4.0 | 5.5 | 5.5 | 5.5 | 7.5 |
| Rotation speed(r/min) | 36 | 63 | 85 | 130 | 180 | |||||

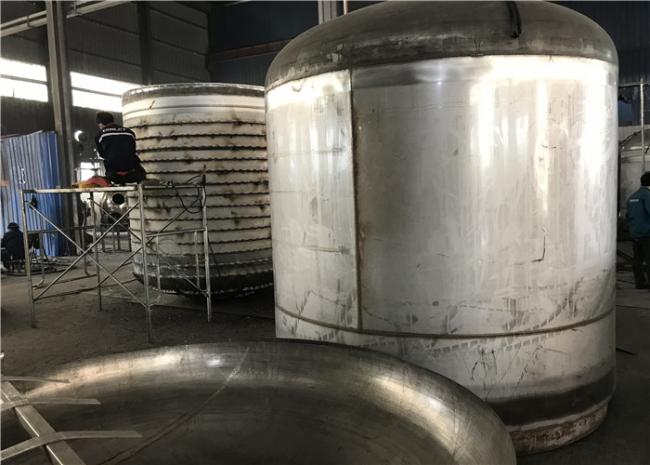

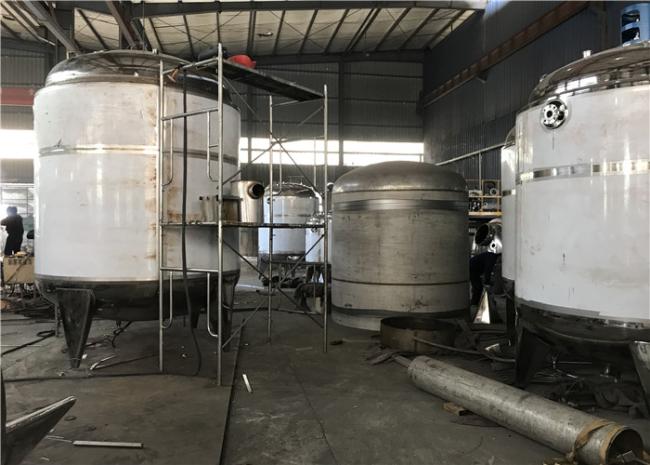

3. Factory :
Application:
Used as liquid storage tank, temporary storage tank and water storage tank etc.
Ideal in fields such as foods, dairy production, fruit juice beverages, pharmaceutical, chemical industry and biological engineering etc.
Stainless Steel Juice Storage Mixing Tank Blending Vat Mixing Vessel With Mixer
Capacity: 200-50,000 liters
Big Large Capacity Stainless Steel Storage Mixing Tank For Food Industry
Parameter:
Type: Single layer, double layer
Isolation material: rock wool, PU foam
Sockets: manhole, inlet, outlet, cleaning ball, air vent, spare hole, etc
Finish: Sanitary finish, without dead angles.
Material:
All materials adopt stainless steel SUS304 or SUS316L. Internal surface is polished to Ra≤0.4μm and external surface has got surface polishing treatment, which is in accordance with GMP standard.
