Kaiquan Stainless Steel Jacketed Kettle Sauce Meat Jacketed Cooking Kettle For Ketchup
Stainless Steel Jam Sauce Meat Jacketed Cooking Kettle For Ketchup

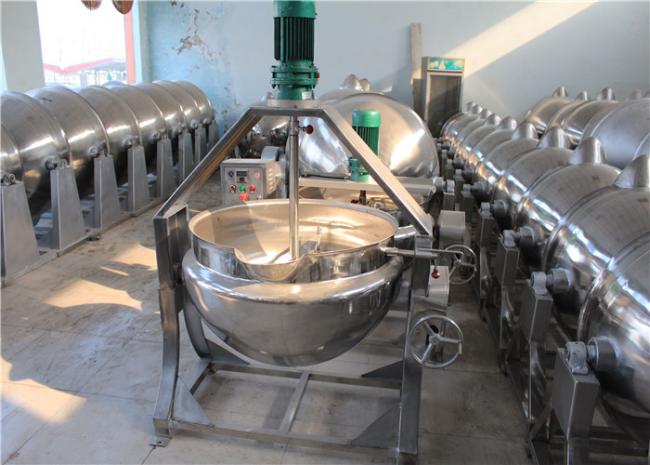

1. Jam Kettle Picture :
Product Application:
2. Chilli sauce,jam,ketchup,sugar,cakes,confection,glace fruit such sticky liquid production .
3. Meat,seafood,braised food ect. canned food braising production .
4. Soup cooking,fried,stewing,boiling in large hotel,canteens,schools where there so many people.
Product Introduce:
We have the jacketed kettle with oil heating and gas heating.For the oil heating,the jacketed kettle is consist of pan, plank ,worm wheel and worm. The Stainless steel jacketed kettle with mixer for food processing avoids material burning and make food pretty and tasty. The gas heating jacketed kettle combine the advanced perfect combustion system and the pot body materials . energy saving no waste gas,no waste residue and noise pollution. The mixing system according to diffeent craft demand Steam heating and electric heating and gas heating are for your options.
Product Feature:
Applicable range:
1. Used as liquid storage tank, liquid composing tank, liquid blending tank, temporary storage tank and hot water tank etc.
2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Material are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Configuration of tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly.
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements ).
8. Liquid level meter and level controller (According to customer requirements ).
9. Eddy-proof board.
The Planetary stirring mixing more throughly.
Variable mixing speeds meet different cooking processes.
The Mixing Scrapers touch the Bowl thoroughly,make the material not sticky paste.
The SUS304 body is not easy to rust and easy to clean.
With ISO certification.
The mixing head can be lifted 45° by hydraulic cylinder.
Easy operation with moveable control panel and save manpower.
| Model | GTJ-100 | GTJ-200 | GTJ-300 | GTJ-500 | GTJ-600 |
| Volume (L) | 100 | 200 | 300 | 500 | 600 |
| Pot Size (mm) | Φ700×530 | Φ800×580 | Φ900×630 | Φ1100×730 | Φ1200×780 |
| Working Pressure(MPa) | ≤0.3(jacket) | ||||
| Working Temperature | ≤100 degree C (material in pot) ≤143 degree C(jacket) |
||||
| Blending Speed (r/min) | 35 | ||||
| Steam Inlet(DN) | 20 | 20 | 20 | 25 | 25 |
| Heating Area(m2) | 0.7 | 0.95 | 1.2 | 1.8 | 2.2 |
| Evaporative Power(kg/h) | 45 | 80 | 100 | 140 | 160 |
| Steam Consumption (kg/h) | 50 | 90 | 112 | 160 | 182 |
| Motor Power (KW) | 0.37 | 0.55 | 0.55 | 1.1 | 1.1 |
| Dimension(cm) | 115×80×100 | 135×90×107 | 145×100×115 | 165×120×136 | 176×130×146 |
| Weight(kg) | 180 | 200 | 220 | 290 | 320 |

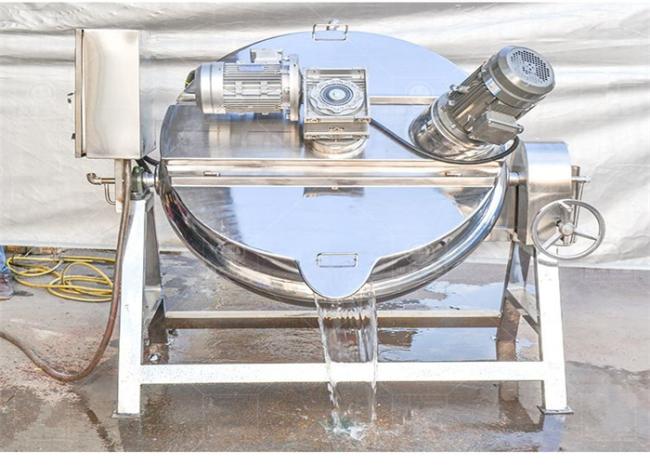

Jacketed kettle structure available
For both of the agitated and non-agitated jacketed kettle, we have vertical and tilting type kettles in production. We have a large variety of stainless steel jacketed kettles for food, cosmetic, pharmaceutical, and chemical processing. Our stainless steel cooling kettles for manufacturing include jacketed kettles, vacuum kettles, high pressure kettles, steam kettles, and with explosion-proof motors. Kettles without agitation are available as well as scrape surface agitated kettles (single motion and double motion agitation), propeller agitated kettles, high speed homogenizing kettles, and hemispherical kettles. Tilting kettles and bottom discharge kettles as well as steam cooking kettles (electric and gas fired kettles) are available. Our inventory includes in all sizes including 150 gallon, 200 gallon, 500 gallon and 1,000 gallon and both larger and smaller.
jacketed kettler application
Stainless steel jacketed kettles are widely used for food, cosmetic, pharmaceutical, and chemical processing.
Cooking kettle customer case
200L oil jacketed kettle 1 Quantity (Piece). to process Tomato Paste to Tomato Sauce. CIF Kolkata Port or Haldia Port, West Bengal, India
200Liter electric heating kettle
| Model | KQ-200 | ||
| kettle | diameter | Φ800mm | |
| Depth | 550mm | ||
| Capacity (L) | 234 (200L working capacity + 17% allowance) |
||
| MAX Mechanical tilt | 90ºC | ||
| Connection pipes | Oil inlet | 1" | |
| Oil discharge | 1" | ||
| Motor power | 1.1kw | ||
| Electric-heating power | 24KW/H | ||
| Heating type | resistance heating elements | ||
| Heat transfer area | 1.3 m2 | ||
|
65KG | ||
| Design temperature | 180ºC | ||
| MAX working temperature | 151ºC | ||
| Design pressure | 0.095Mpa | ||
| MAX pressure | 0.095 | ||
| size | L(mm) | 1300 | |
| W ( mm ) | 1200 | ||
| H(mm) | 1600 | ||
| Accessories |
|
||
200L kettle Price:
| Unit Price | Unite price | Quantity |
| Electric heating type | 2,100usd | 1PCS |
sea freight and raw material of cooking kettles will change every period of time, the prices you see here may not the final price for you. please get in touch with us for the latest price.
How to use the gas heating electric heating kettle :
- Feed thermostatic oil intot he jacket.
- Preset a temperature in the control panel
- Turn on the heating button on the control panel
- Start the mixer (if need)
Application:
this kettle can be used to the cooking of milk, juice, tea, cream as well as sauce.
also, it can be used to the cooling of different kind of candy.
Stainless Steel Jam Sauce Meat Jacketed Cooking Kettle For Ketchup
